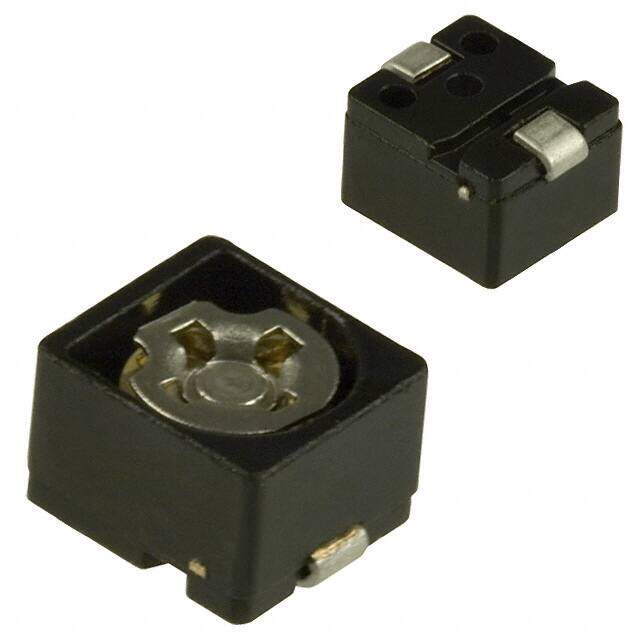

TZB4Z250BB10R00
RoHS
/
Package B
Category Capacitors / Trimmers, Variable Capacitors
Description
B TZB4 50V 25pF 100% 0.177Lx0.157W 4.50mmx4.00mm
PDF
/
Inventory: 6334
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 4mm
Length 7mm
Height Seated (Max) 0.126 3.20mm
Height 3mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 4pF~25pF
Adjustment Type Top
Q @ Freq 300 @ 1MHz
Voltage 50V
Size Code 2816
Dielectric NP0
Depth 4.5mm
Packing Method TR, 7 INCH
Voltage - Rated DC 50V
Capacitance 25pF
HTS Code 8532.30.00.10
Additional Feature PERCENTAGE TOLERANCE ON C_MAX IS 0/+100
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature General Purpose
JESD-609 Code e3
Tolerance 100%
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Series TZB4
Packaging Cut Tape (CT)
Operating Temperature -25°C~85°C
Physical
Dielectric Material Ceramic
Terminal Shape GULL WING
Package / Case B
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status TO BE DISCONTINUED (Last Updated: 2 weeks ago)
