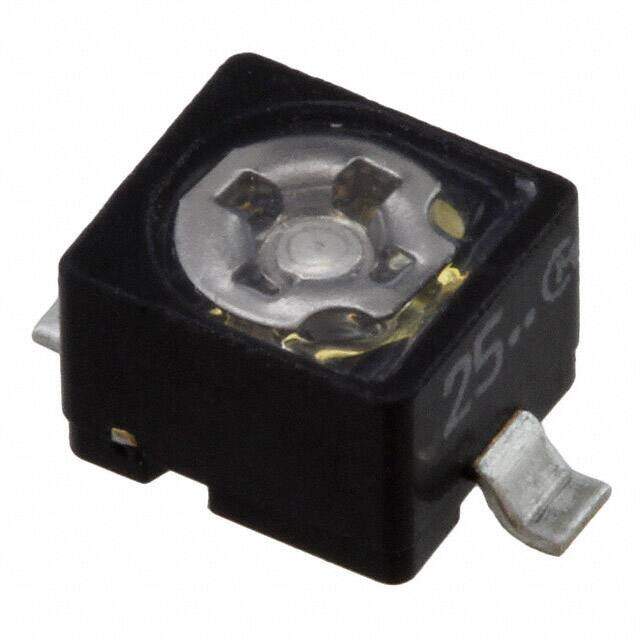

TZB4Z250AB10R00
RoHS
/
Package B
Category Capacitors / Trimmers, Variable Capacitors
Description
B TZB4 50V 25pF 100% 300ppm/C
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status TO BE DISCONTINUED (Last Updated: 2 weeks ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case B
Terminal Shape WRAPAROUND
Dielectric Material Ceramic
Technical
Operating Temperature -25°C~85°C
Packaging Cut Tape (CT)
Series TZB4
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance 100%
JESD-609 Code e3
Feature General Purpose
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient 300 ppm/°C
Terminal Finish Tin (Sn)
Color Black
Additional Feature PERCENTAGE TOLERANCE ON C_MAX IS 0/+100
HTS Code 8532.30.00.10
Capacitance 25pF
Voltage - Rated DC 50V
Packing Method TR, 7 INCH
Depth 4.5mm
Voltage - Rated AC 50V
Dielectric NP0
Size Code 2016
Voltage 50V
Q @ Freq 300 @ 1MHz
Adjustment Type Top
Capacitance Range 4pF~25pF
Adjuster Orientation VERTICAL
Dimensions
Height 3mm
Height Seated (Max) 0.126 3.20mm
Width 4mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
