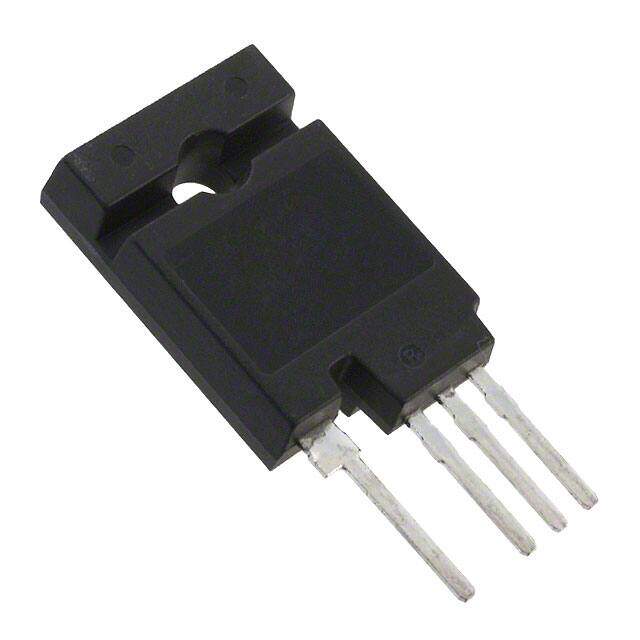

STC08IE120HV
RoHS
RoHS compliant
RoHS compliantPackage TO-247-4
Category Discrete Semiconductor Products / Transistors - Special Purpose
Description
Gate Drivers Swtch Bi Transistr ESBT 1200 V
PDF
/
Inventory: 2293
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5.15mm
Length 15.75mm
Height 20.15mm
Technical
Collector-Emitter Voltage-Max 1200V
DC Current Gain-Min (hFE) 5
Collector Current-Max (IC) 8A
Power Dissipation-Max (Abs) 208W
Transistor Type NPN - Emitter Switched Bipolar
Polarity/Channel Type NPN
Transistor Application SWITCHING
Configuration SINGLE WITH BUILT-IN FET AND DIODE
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code R-PSFM-T3
Pin Count 3
Base Part Number STC08I
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Current Rating 8A
Reach Compliance Code not_compliant
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Subcategory Other Transistors
Voltage - Rated 1200V 1.2kV
Applications Gate Driver
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Series ESBT?
Packaging Tube
Physical
Number of Pins 4
Package / Case TO-247-4
Mounting Type Through Hole
Mount Through Hole
