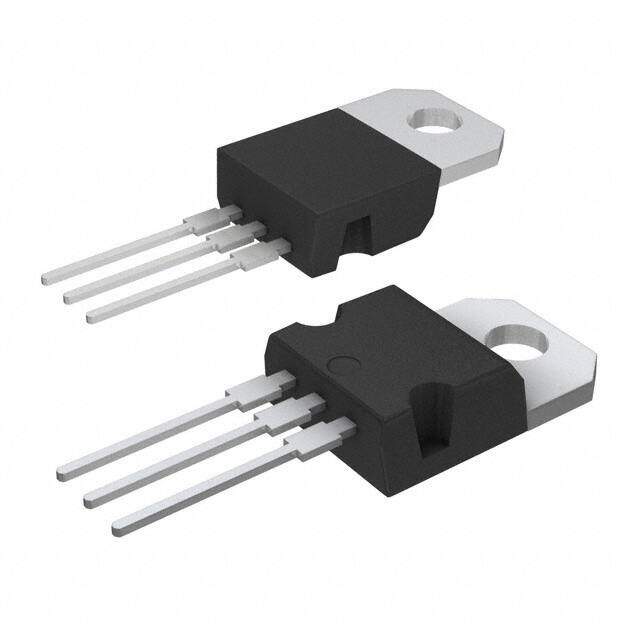

STGP20M65DF2
RoHS
RoHS compliant
RoHS compliantPackage TO-220-3
Category Discrete Semiconductor Products / Transistors - IGBTs - Single
Description
IGBT TRENCH 650V 40A TO220
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.7974
≥1 USD $1.7974
≥10 USD $1.47535
≥100 USD $1.4288
≥500 USD $1.3832
≥1000 USD $1.33665
Inventory: 25210
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Switching Energy 140μJ (on), 560μJ (off)
Td (on/off) @ 25°C 26ns/108ns
Current - Collector Pulsed (Icm) 80A
Gate Charge 63nC
IGBT Type Trench Field Stop
Vce(on) (Max) @ Vge, Ic 2V @ 15V, 20A
Test Condition 400V, 20A, 12 Ω, 15V
Current - Collector (Ic) (Max) 40A
Voltage - Collector Emitter Breakdown (Max) 650V
Reverse Recovery Time 166ns
Power - Max 166W
Input Type Standard
Base Part Number STGP20
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series M
Operating Temperature -55°C~175°C TJ
Physical
Package / Case TO-220-3
Mounting Type Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Factory Lead Time 30 Weeks
