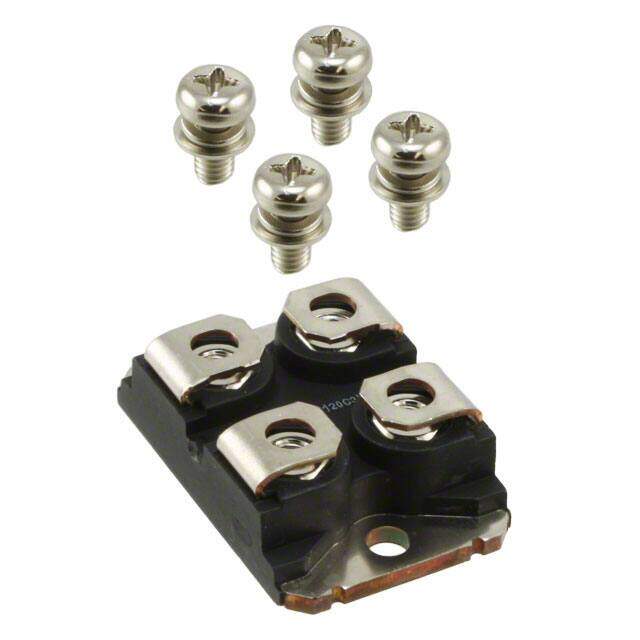

IXYN50N170CV1
RoHS
RoHS compliant
RoHS compliantPackage SOT-227-4, miniBLOC
Category Discrete Semiconductor Products / Transistors - IGBTs - Single
Description
IGBT 1700V 120A SOT227B
PDF
/
Buying Options
Total Price: USD $48.45
Unit Price: USD $48.4528
≥1 USD $48.4528
≥10 USD $44.05016
≥100 USD $39.64488
Inventory: 266
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Switching Energy 8.7mJ (on), 5.6mJ (off)
Td (on/off) @ 25°C 22ns/236ns
Current - Collector Pulsed (Icm) 485A
Gate Charge 260nC
Vce(on) (Max) @ Vge, Ic 3.7V @ 15V, 50A
Test Condition 850V, 50A, 1 Ω, 15V
Current - Collector (Ic) (Max) 120A
Voltage - Collector Emitter Breakdown (Max) 1700V
Reverse Recovery Time 255ns
Power - Max 880W
Input Type Standard
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series XPT?
Packaging Tube
Operating Temperature -55°C~175°C TJ
Physical
Package / Case SOT-227-4, miniBLOC
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 24 Weeks
