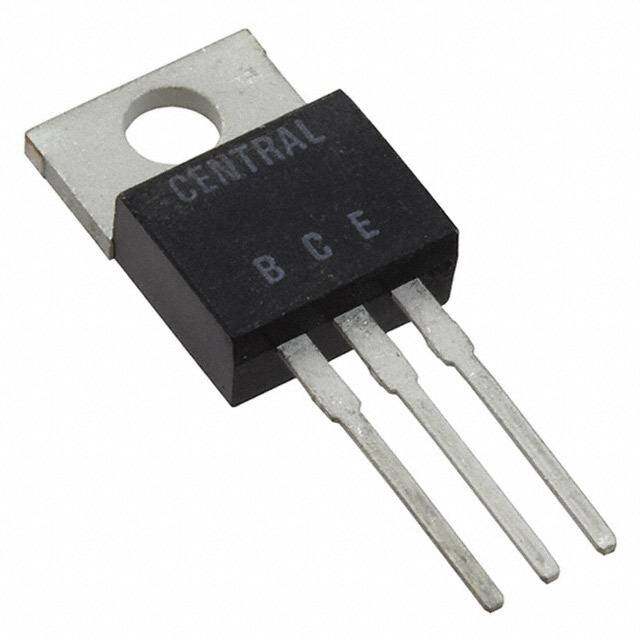

2N6486
RoHS
/
Package TO-220-3
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
PDF
/
Buying Options
Total Price: USD $0.87
Unit Price: USD $0.8712
≥1 USD $0.8712
Inventory: 300
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Continuous Collector Current 450mA
DC Current Gain-Min (hFE) 5
hFE Min 20
Emitter Base Voltage (VEBO) 5V
Collector Base Voltage (VCBO) 50V
Frequency - Transition 5MHz
Collector Emitter Saturation Voltage 3.5V
Transition Frequency 5MHz
Collector Emitter Breakdown Voltage 40V
Max Collector Current 15A
Collector Emitter Voltage (VCEO) 3.5V
Gain Bandwidth Product 5MHz
Transistor Application SWITCHING
Case Connection COLLECTOR
Power Dissipation-Max 1.8W
Configuration SINGLE
Polarity NPN
Number of Elements 1
JESD-30 Code R-PSFM-T3
Pin Count 3
Terminal Position SINGLE
Min Operating Temperature -65°C
Max Operating Temperature 150°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 3
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 2012
Packaging Bulk
Physical
Package / Case TO-220-3
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
