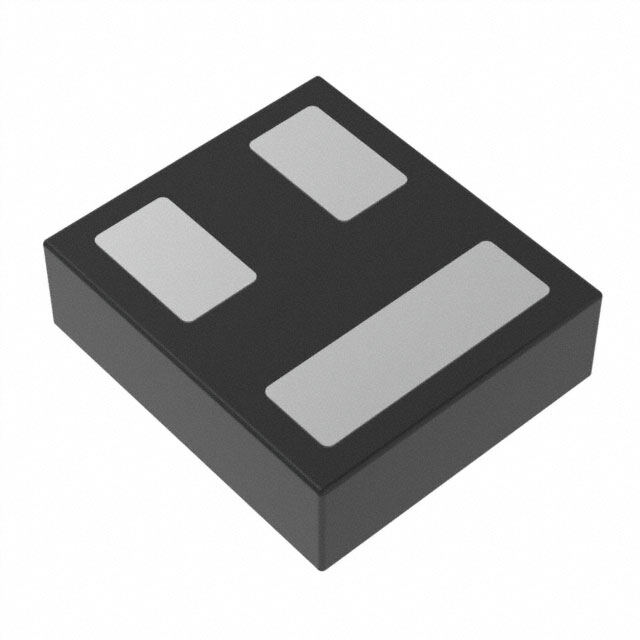

CSD25501F3T
RoHS
RoHS compliant
RoHS compliantPackage 3-XFLGA
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
20-V P-CHANNEL FEMTOFET MOSFET
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.7568
≥1 USD $0.7568
≥10 USD $0.61688
≥100 USD $0.479688
Inventory: 15187
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Physical
Mounting Type Surface Mount
Package / Case 3-XFLGA
Surface Mount YES
Number of Pins 3
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Series FemtoFET?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Technology MOSFET (Metal Oxide)
Terminal Position BOTTOM
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number CSD25501
Number of Elements 1
Power Dissipation-Max 500mW Ta
Element Configuration Single
Operating Mode ENHANCEMENT MODE
FET Type P-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 76m Ω @ 400mA, 4.5V
Vgs(th) (Max) @ Id 1.05V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 385pF @ 10V
Current - Continuous Drain (Id) @ 25°C 3.6A Ta
Gate Charge (Qg) (Max) @ Vgs 1.33nC @ 4.5V
Drain to Source Voltage (Vdss) 20V
Drive Voltage (Max Rds On,Min Rds On) 1.8V 4.5V
Vgs (Max) -20V
Drain-source On Resistance-Max 0.125Ohm
DS Breakdown Voltage-Min 20V
Dimensions
Length 690μm
Width 600μm
Thickness 200μm
Compliance
RoHS Status ROHS3 Compliant
