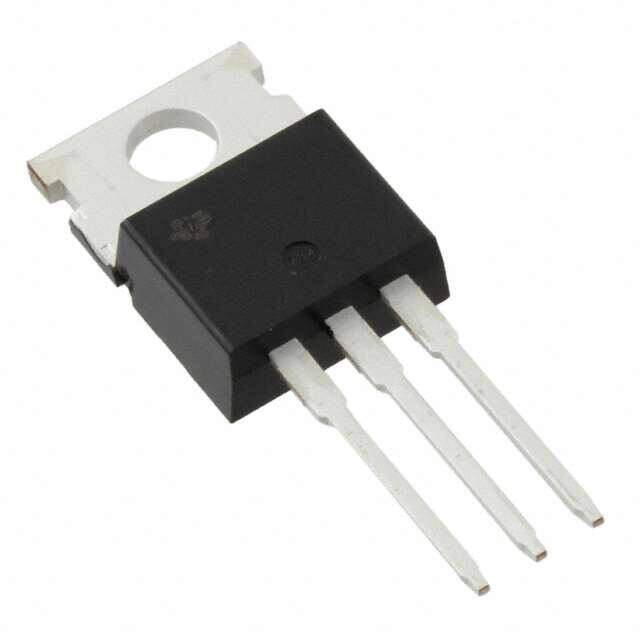

CSD19535KCS
RoHS
RoHS compliant
RoHS compliantPackage TO-220-3
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 100V TO-220
PDF
/
Buying Options
Total Price: USD $2.85
Unit Price: USD $2.8512
≥1 USD $2.8512
≥10 USD $2.261952
≥100 USD $1.938816
≥500 USD $1.723392
≥1000 USD $1.475654
≥3000 USD $1.389485
Inventory: 777
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-3
Number of Pins 3
Weight 6.000006g
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tube
Series NexFET?
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Additional Feature AVALANCHE RATED
Technology MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number CSD19535
Number of Elements 1
Number of Channels 1
Power Dissipation-Max 300W Tc
Element Configuration Single
Operating Mode ENHANCEMENT MODE
Power Dissipation 300W
Case Connection DRAIN
Turn On Delay Time 32 ns
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 3.6m Ω @ 100A, 10V
Vgs(th) (Max) @ Id 3.4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 7930pF @ 50V
Current - Continuous Drain (Id) @ 25°C 150A Ta
Gate Charge (Qg) (Max) @ Vgs 101nC @ 10V
Rise Time 15 ns
Drive Voltage (Max Rds On,Min Rds On) 6V 10V
Vgs (Max) ±20V
Fall Time (Typ) 5 ns
Turn-Off Delay Time 60 ns
Continuous Drain Current (ID) 150A
Threshold Voltage 2.7V
Gate to Source Voltage (Vgs) 20V
Drain-source On Resistance-Max 0.0044Ohm
Drain to Source Breakdown Voltage 100V
Pulsed Drain Current-Max (IDM) 400A
Dimensions
Height 4.7mm
Length 10.16mm
Width 8.7mm
Thickness 4.58mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
