STP3N150
RoHS
RoHS compliant
RoHS compliantPackage TO-220-3
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET 1500V 6Ohm 2.5A N-Channel
PDF
/
Buying Options
Total Price: USD $4.42
Unit Price: USD $4.4176
≥1 USD $4.4176
≥10 USD $3.503984
≥100 USD $3.003352
≥500 USD $2.669674
≥1000 USD $2.285906
≥3000 USD $2.152427
Inventory: 1715
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-3
Number of Pins 3
Weight 4.535924g
Transistor Element Material SILICON
Technical
Operating Temperature 150°C TJ
Packaging Tube
Series PowerMESH?
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Resistance 9Ohm
Terminal Finish Matte Tin (Sn) - annealed
Subcategory FET General Purpose Power
Technology MOSFET (Metal Oxide)
Base Part Number STP3N
Pin Count 3
Number of Elements 1
Power Dissipation-Max 140W Tc
Element Configuration Single
Operating Mode ENHANCEMENT MODE
Power Dissipation 140W
Turn On Delay Time 24 ns
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 9 Ω @ 1.3A, 10V
Vgs(th) (Max) @ Id 5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 939pF @ 25V
Current - Continuous Drain (Id) @ 25°C 2.5A Tc
Gate Charge (Qg) (Max) @ Vgs 29.3nC @ 10V
Rise Time 47 ns
Drain to Source Voltage (Vdss) 1500V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±30V
Fall Time (Typ) 61 ns
Turn-Off Delay Time 45 ns
Continuous Drain Current (ID) 2.5A
Threshold Voltage 4V
JEDEC-95 Code TO-220AB
Gate to Source Voltage (Vgs) 30V
Drain to Source Breakdown Voltage 1.5kV
Avalanche Energy Rating (Eas) 450 mJ
Dimensions
Height 15.75mm
Length 10.4mm
Width 4.6mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free

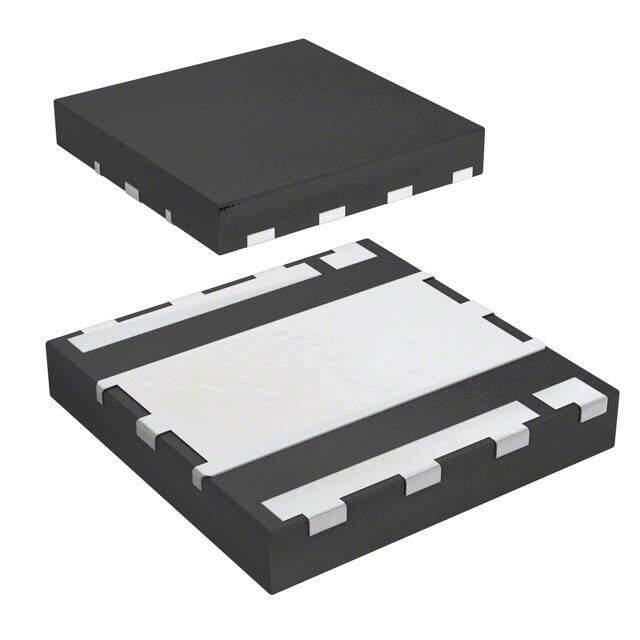

Alternative Model
