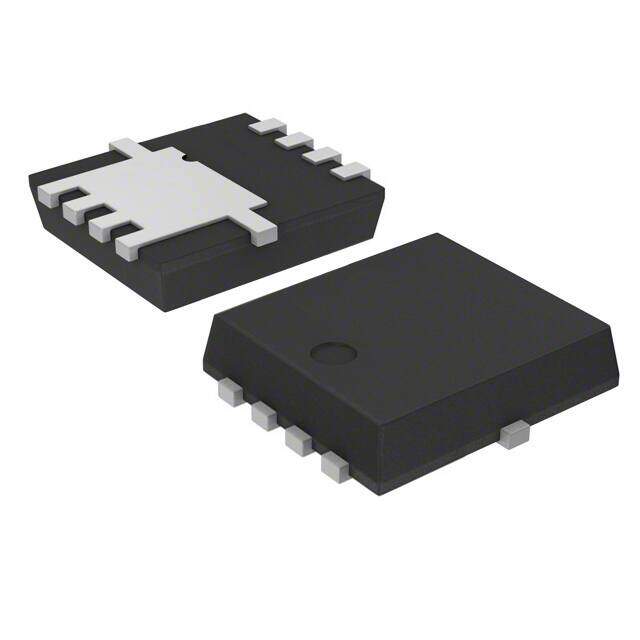

STL90N10F7
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerVDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 100V 0.009Ohm 16A STripFET VII
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.8832
≥1 USD $1.8832
≥10 USD $1.56376
≥100 USD $1.24476
≥500 USD $1.053254
≥1000 USD $0.893666
Inventory: 1232
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-PowerVDFN
Number of Pins 8
Technical
Operating Temperature 175°C TJ
Packaging Tape & Reel (TR)
Series DeepGATE?, STripFET? VII
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Resistance 8mOhm
Subcategory FET General Purpose Power
Technology MOSFET (Metal Oxide)
Base Part Number STL90
Number of Channels 2
Power Dissipation-Max 5W Ta 100W Tc
Element Configuration Single
Turn On Delay Time 19 ns
FET Type N-Channel
Rds On (Max) @ Id, Vgs 10.5m Ω @ 8A, 10V
Vgs(th) (Max) @ Id 4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 3550pF @ 50V
Current - Continuous Drain (Id) @ 25°C 70A Tc
Gate Charge (Qg) (Max) @ Vgs 39nC @ 10V
Rise Time 32ns
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±20V
Fall Time (Typ) 13 ns
Turn-Off Delay Time 36 ns
Continuous Drain Current (ID) 70A
Gate to Source Voltage (Vgs) 20V
Drain to Source Breakdown Voltage 100V
Dimensions
Height 950μm
Length 5.4mm
Width 6.35mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
