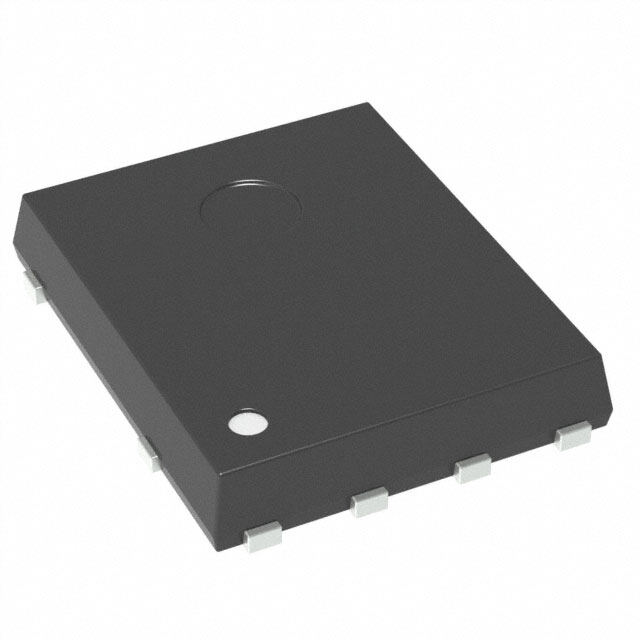

STL10LN80K5
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerVDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 800V 6A POWERFLAT
PDF
/
Inventory: 5028
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Vgs (Max) ±30V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 800V
Gate Charge (Qg) (Max) @ Vgs 15nC @ 10V
Current - Continuous Drain (Id) @ 25°C 6A Tc
Input Capacitance (Ciss) (Max) @ Vds 427pF @ 100V
Vgs(th) (Max) @ Id 5V @ 100μA
Rds On (Max) @ Id, Vgs 660m Ω @ 4A, 10V
FET Type N-Channel
Power Dissipation-Max 42W Tc
Base Part Number STL10
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Technology MOSFET (Metal Oxide)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series MDmesh? K5
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Package / Case 8-PowerVDFN
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Factory Lead Time 17 Weeks
