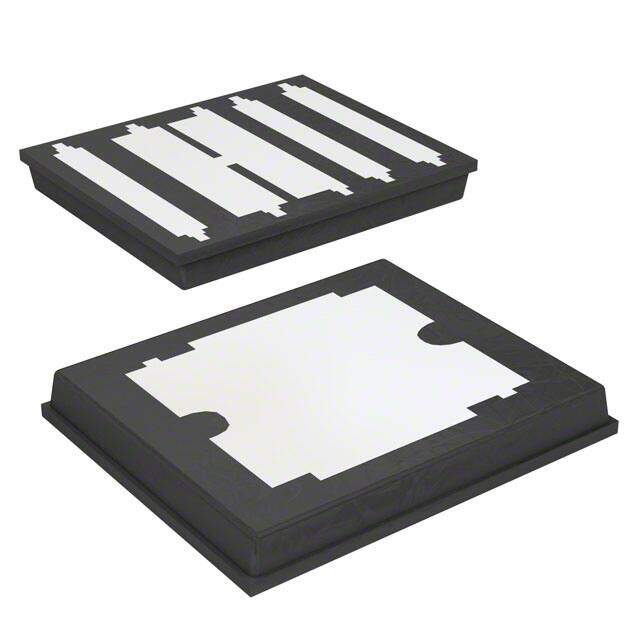

STK30N2LLH5
RoHS
RoHS compliant
RoHS compliantPackage PolarPak?
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 25V 30A POLARPAK
PDF
/
Inventory: 1604
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case PolarPak?
Number of Pins 10
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Series STripFET? V
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Terminal Finish MATTE TIN
Technology MOSFET (Metal Oxide)
Terminal Position DUAL
Terminal Form NO LEAD
Base Part Number STK30
Pin Count 10
JESD-30 Code R-XDSO-N4
Qualification Status Not Qualified
Number of Elements 1
Power Dissipation-Max 5.2W Tc
Element Configuration Single
Operating Mode ENHANCEMENT MODE
Power Dissipation 5.2W
Case Connection DRAIN
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 2.9m Ω @ 15A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 2290pF @ 25V
Current - Continuous Drain (Id) @ 25°C 30A Tc
Gate Charge (Qg) (Max) @ Vgs 18nC @ 4.5V
Drive Voltage (Max Rds On,Min Rds On) 4.5V 10V
Vgs (Max) ±20V
Continuous Drain Current (ID) 30A
Drain-source On Resistance-Max 0.0036Ohm
Drain to Source Breakdown Voltage 25V
Pulsed Drain Current-Max (IDM) 120A
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
