R6046ANZC8
RoHS
RoHS compliant

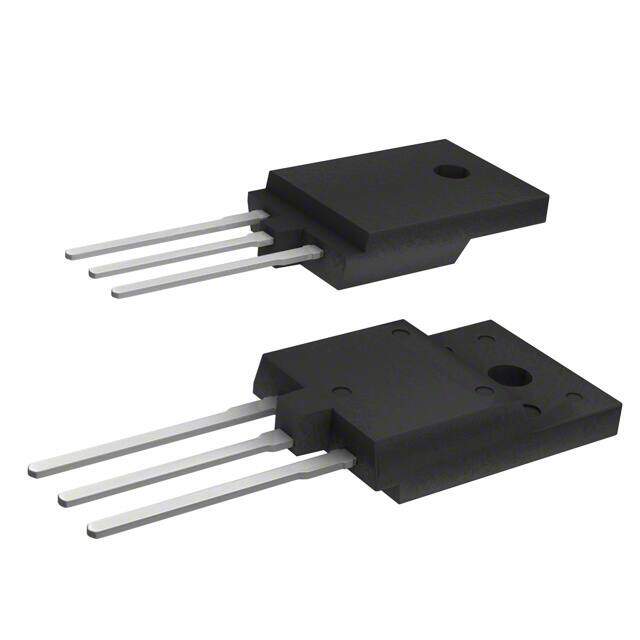

RoHS compliantPackage TO-3P-3 Full Pack
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 10V DRIVE TO-3PF
PDF
/
Buying Options
Total Price: USD $16.8
Unit Price: USD $16.799912
≥1 USD $16.799912
≥10 USD $15.848982
≥100 USD $14.951864
≥500 USD $14.10553
≥1000 USD $13.307108
Inventory: 1169
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
DS Breakdown Voltage-Min 600V
Fault Protection Over Temperature, Reverse Current
Gate to Source Voltage (Vgs) 30V
Continuous Drain Current (ID) 46A
Turn-Off Delay Time 230 ns
Fall Time (Typ) 100 ns
Vgs (Max) ±30V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 600V
Rise Time 130ns
Gate Charge (Qg) (Max) @ Vgs 150nC @ 10V
Current - Continuous Drain (Id) @ 25°C 46A Ta
Input Capacitance (Ciss) (Max) @ Vds 6000pF @ 25V
Vgs(th) (Max) @ Id 4.5V @ 1mA
Rds On (Max) @ Id, Vgs 81m Ω @ 23A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 60 ns
Case Connection ISOLATED
Operating Mode ENHANCEMENT MODE
Output Configuration High Side
Power Dissipation-Max 120W Tc
Interface On/Off
Number of Channels 1
Number of Elements 1
Max Output Current 500mA
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology MOSFET (Metal Oxide)
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Published 2011
Packaging Bulk
Operating Temperature 150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 3
Surface Mount NO
Package / Case TO-3P-3 Full Pack
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
