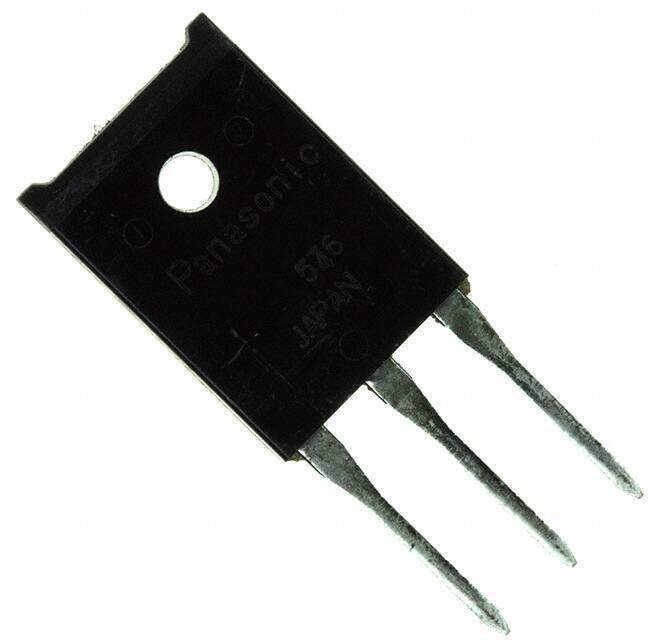

2SK3318
RoHS
/
Package TOP-3F
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 600V 15A TOP-3F
PDF
/
Inventory: 3489
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TOP-3F
Transistor Element Material SILICON
Technical
Operating Temperature 150°C TJ
Packaging Bulk
Published 2004
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
HTS Code 8541.29.00.95
Voltage - Rated DC 600V
Technology MOSFET (Metal Oxide)
Terminal Position SINGLE
Reach Compliance Code unknown
Current Rating 15A
JESD-30 Code R-PSFM-T3
Qualification Status Not Qualified
Number of Elements 1
Configuration SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max 3W Ta 100W Tc
Operating Mode ENHANCEMENT MODE
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 460m Ω @ 7.5A, 10V
Vgs(th) (Max) @ Id 4V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds 3500pF @ 20V
Current - Continuous Drain (Id) @ 25°C 15A Tc
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±30V
Continuous Drain Current (ID) 15A
Drain-source On Resistance-Max 0.46Ohm
Pulsed Drain Current-Max (IDM) 60A
Avalanche Energy Rating (Eas) 112.5 mJ
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
