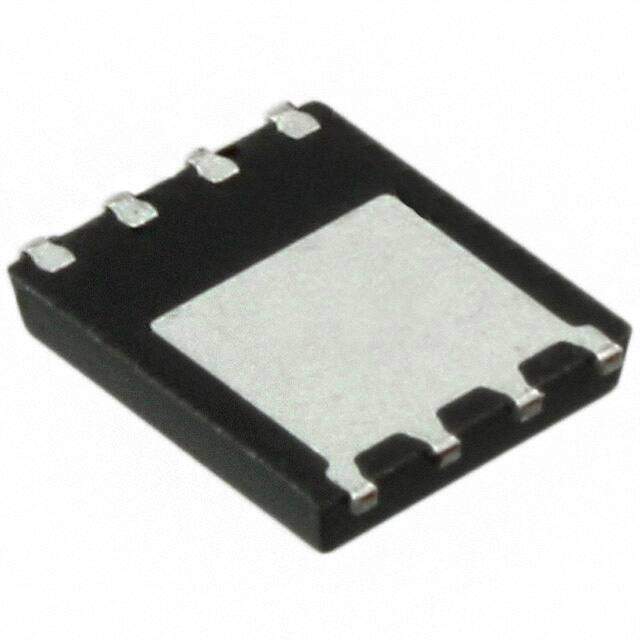

FDMC86184
RoHS
/
Package 8-PowerWDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 100V 57A 8PQFN
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.804
≥1 USD $1.804
≥10 USD $1.49688
≥100 USD $1.191168
≥500 USD $1.007934
≥1000 USD $0.855219
Inventory: 1091
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Lifecycle Status ACTIVE (Last Updated: 16 hours ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-PowerWDFN
Weight 152.7mg
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Series PowerTrench?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Technology MOSFET (Metal Oxide)
Power Dissipation-Max 54W Tc
Element Configuration Single
FET Type N-Channel
Rds On (Max) @ Id, Vgs 8.5m Ω @ 21A, 10V
Vgs(th) (Max) @ Id 4V @ 110μA
Input Capacitance (Ciss) (Max) @ Vds 2090pF @ 50V
Current - Continuous Drain (Id) @ 25°C 57A Tc
Gate Charge (Qg) (Max) @ Vgs 20nC @ 6V
Drain to Source Voltage (Vdss) 100V
Drive Voltage (Max Rds On,Min Rds On) 6V 10V
Vgs (Max) ±20V
Compliance
RoHS Status RoHS Compliant

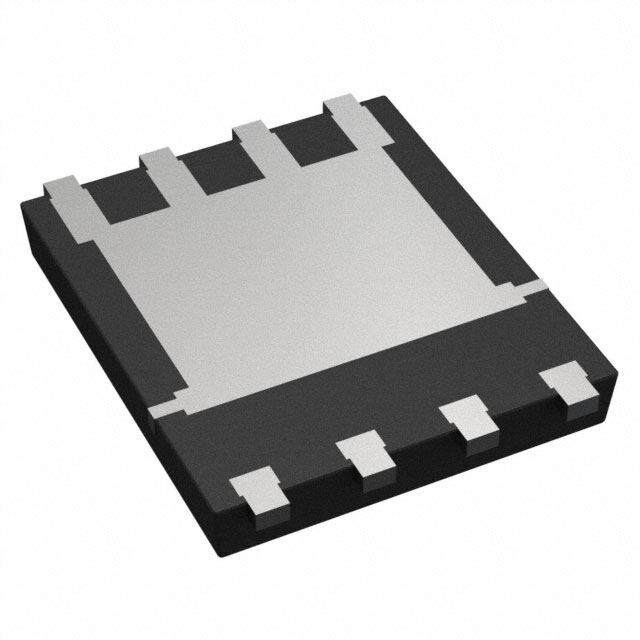

Alternative Model
