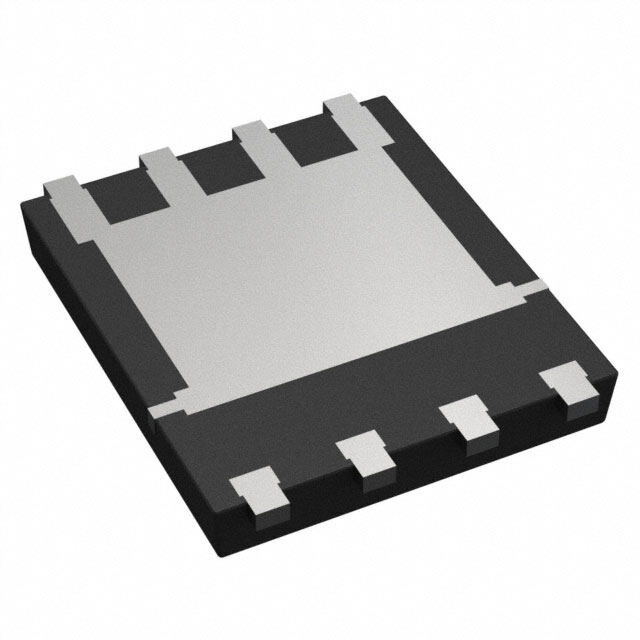

CMS70N04H8-HF
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerTDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 40VDS 20VGS 70A DFN5
PDF
/
Inventory: 5867
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 8-PowerTDFN
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Technology MOSFET (Metal Oxide)
Power Dissipation-Max 2W Ta 72.3W Tc
FET Type N-Channel
Rds On (Max) @ Id, Vgs 8.5m Ω @ 20A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 1278pF @ 25V
Current - Continuous Drain (Id) @ 25°C 70A Tc
Gate Charge (Qg) (Max) @ Vgs 19.7nC @ 10V
Drain to Source Voltage (Vdss) 40V
Drive Voltage (Max Rds On,Min Rds On) 4.5V 10V
Vgs (Max) ±20V
Compliance
RoHS Status ROHS3 Compliant
