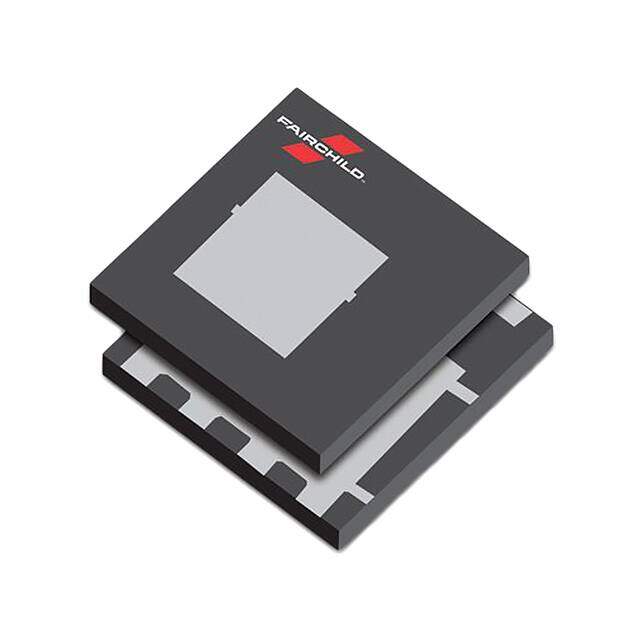

FDMC8010DC
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerWDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET 2 N-CH 30V 157A 8-PQFN
PDF
/
Buying Options
Total Price: USD $1.1
Unit Price: USD $1.1
≥1 USD $1.1
≥10 USD $0.8976
≥100 USD $0.698104
≥500 USD $0.591694
≥1000 USD $0.481994
Inventory: 1261
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-PowerWDFN
Weight 39mg
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Terminal Finish Tin (Sn)
Technology MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Power Dissipation-Max 3W Ta
Element Configuration Dual
FET Type N-Channel
Rds On (Max) @ Id, Vgs 1.28m Ω @ 37A, 10V
Vgs(th) (Max) @ Id 3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 7080pF @ 15V
Current - Continuous Drain (Id) @ 25°C 37A Ta
Gate Charge (Qg) (Max) @ Vgs 94nC @ 15V
Drain to Source Voltage (Vdss) 30V
Drive Voltage (Max Rds On,Min Rds On) 4.5V 10V
Vgs (Max) ±20V
FET Feature Standard
Compliance
RoHS Status ROHS3 Compliant
