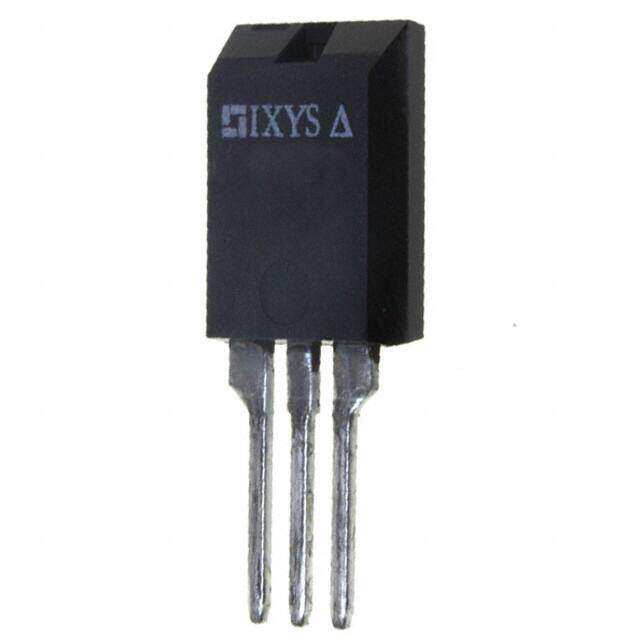

IXTC220N055T
RoHS
/
Package ISOPLUS220?
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 55V 130A ISOPLUS220
PDF
/
Inventory: 5934
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case ISOPLUS220?
Number of Pins 3
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tube
Published 2006
Series TrenchMV?
JESD-609 Code e1
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature AVALANCHE RATED, UL RECOGNIZED
Technology MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
Qualification Status Not Qualified
Number of Elements 1
Power Dissipation-Max 150W Tc
Element Configuration Single
Operating Mode ENHANCEMENT MODE
Power Dissipation 150W
Case Connection ISOLATED
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 4.4m Ω @ 25A, 10V
Vgs(th) (Max) @ Id 4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 7200pF @ 25V
Current - Continuous Drain (Id) @ 25°C 130A Tc
Gate Charge (Qg) (Max) @ Vgs 158nC @ 10V
Rise Time 62ns
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±20V
Fall Time (Typ) 53 ns
Turn-Off Delay Time 53 ns
Continuous Drain Current (ID) 130A
Drain-source On Resistance-Max 0.0044Ohm
Drain to Source Breakdown Voltage 55V
Pulsed Drain Current-Max (IDM) 600A
Avalanche Energy Rating (Eas) 500 mJ
Compliance
RoHS Status RoHS Compliant
