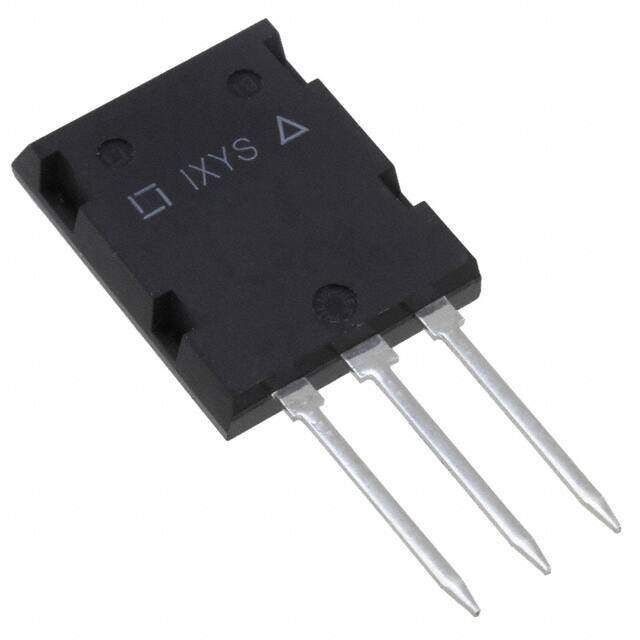

IXFL38N100Q2
RoHS
RoHS compliant
RoHS compliantPackage ISOPLUS264?
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
Trans MOSFET N-CH 1KV 29A 3-Pin(3+Tab) ISOPLUS 264
PDF
/
Buying Options
Total Price: USD $82.33
Unit Price: USD $82.334585
≥1 USD $82.334585
≥200 USD $32.852697
≥500 USD $31.755112
≥1000 USD $31.212885
Inventory: 4153
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 5.21mm
Length 20.29mm
Height 26.42mm
Technical
Avalanche Energy Rating (Eas) 5000 mJ
Drain to Source Breakdown Voltage 1kV
Drain-source On Resistance-Max 0.28Ohm
Gate to Source Voltage (Vgs) 30V
Continuous Drain Current (ID) 29A
Turn-Off Delay Time 57 ns
Fall Time (Typ) 15 ns
Vgs (Max) ±30V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 1000V
Rise Time 28ns
Gate Charge (Qg) (Max) @ Vgs 250nC @ 10V
Current - Continuous Drain (Id) @ 25°C 29A Tc
Input Capacitance (Ciss) (Max) @ Vds 13500pF @ 25V
Vgs(th) (Max) @ Id 5.5V @ 8mA
Rds On (Max) @ Id, Vgs 280m Ω @ 19A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 25 ns
Case Connection ISOLATED
Power Dissipation 380W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 380W Tc
Number of Elements 1
JESD-30 Code R-PSIP-T3
Pin Count 3
Technology MOSFET (Metal Oxide)
Subcategory FET General Purpose Power
Additional Feature AVALANCHE RATED
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Pbfree Code yes
JESD-609 Code e1
Series HiPerFET?
Published 2008
Packaging Tube
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 264
Package / Case ISOPLUS264?
Mounting Type Through Hole
Mount Through Hole
