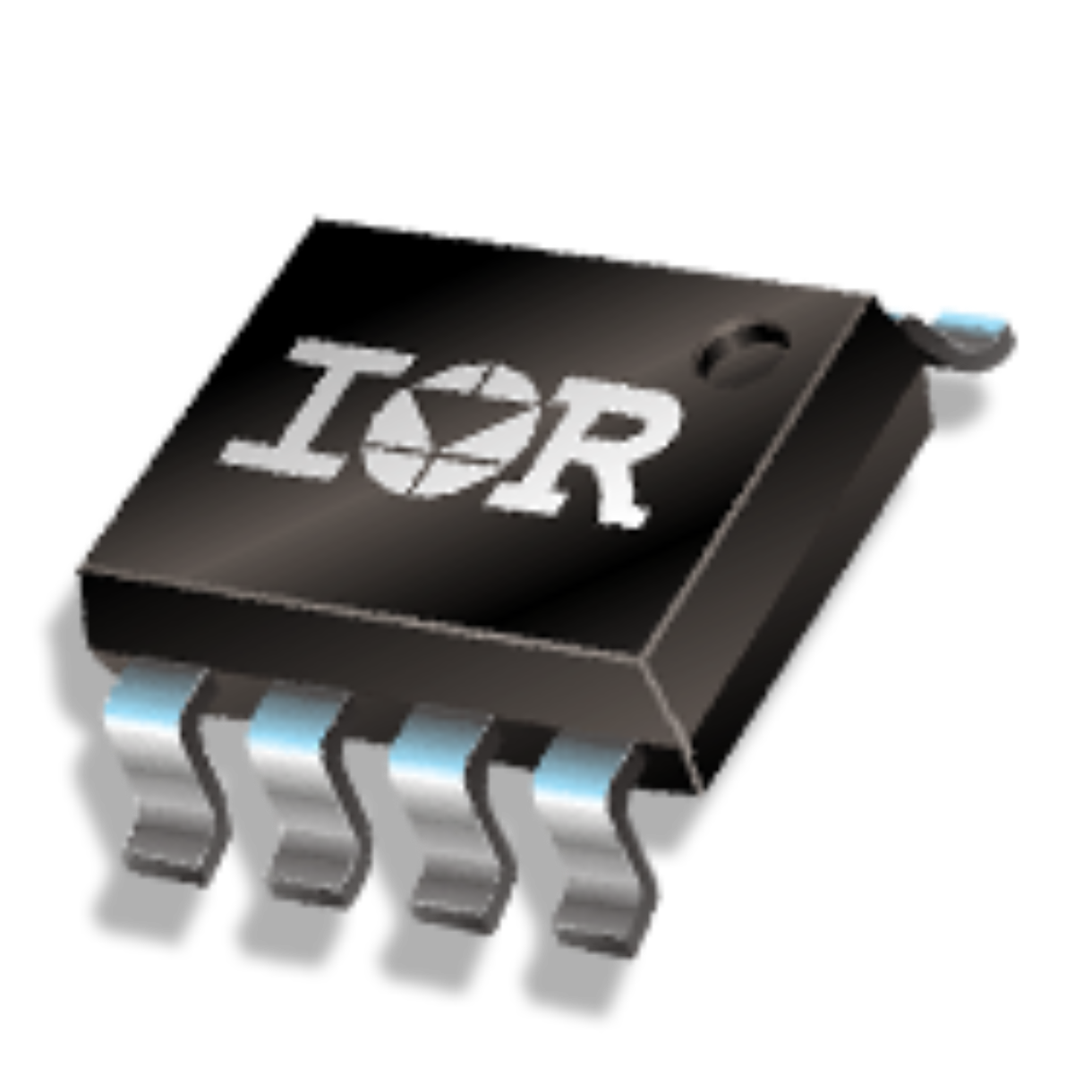

IRF7607
RoHS
/
Package 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 20V 6.5A MICRO-8
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5529
≥1 USD $0.5529
≥10 USD $0.4541
≥100 USD $0.43985
≥500 USD $0.4256
≥1000 USD $0.41135
Inventory: 1257
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Surface Mount YES
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tube
Published 2001
Series HEXFET?
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Additional Feature ULTRA LOW RESISTANCE
Technology MOSFET (Metal Oxide)
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-PDSO-G8
Number of Elements 1
Configuration SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max 1.8W Ta
Operating Mode ENHANCEMENT MODE
FET Type N-Channel
Rds On (Max) @ Id, Vgs 30m Ω @ 6.5A, 4.5V
Vgs(th) (Max) @ Id 1.2V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 1310pF @ 15V
Current - Continuous Drain (Id) @ 25°C 6.5A Ta
Gate Charge (Qg) (Max) @ Vgs 22nC @ 5V
Drain to Source Voltage (Vdss) 20V
Drive Voltage (Max Rds On,Min Rds On) 2.5V 4.5V
Vgs (Max) ±12V
Drain Current-Max (Abs) (ID) 6.5A
Drain-source On Resistance-Max 0.03Ohm
Pulsed Drain Current-Max (IDM) 50A
DS Breakdown Voltage-Min 20V
Compliance
RoHS Status Non-RoHS Compliant
