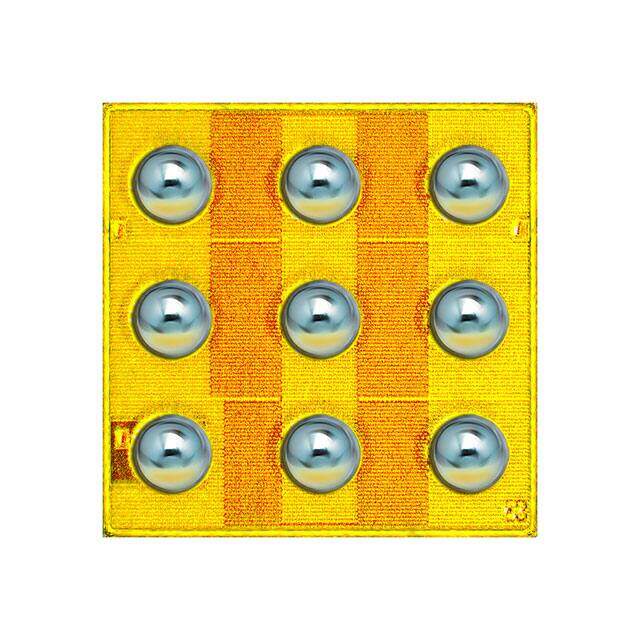

EPC2052
RoHS
RoHS compliant
RoHS compliantPackage Die
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
Trans Gan 100V Die 16MOHM
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.3376
≥1 USD $1.3376
≥10 USD $1.11056
≥100 USD $0.883872
≥500 USD $0.74793
≥1000 USD $0.634603
Inventory: 133456
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case Die
Supplier Device Package Die
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Technology GaNFET (Gallium Nitride)
FET Type N-Channel
Rds On (Max) @ Id, Vgs 13.5mOhm @ 11A, 5V
Vgs(th) (Max) @ Id 2.5V @ 3mA
Input Capacitance (Ciss) (Max) @ Vds 575pF @ 50V
Current - Continuous Drain (Id) @ 25°C 8.2A Ta
Gate Charge (Qg) (Max) @ Vgs 4.5nC @ 5V
Drain to Source Voltage (Vdss) 100V
Drive Voltage (Max Rds On,Min Rds On) 5V
Vgs (Max) +6V, -4V
Compliance
RoHS Status ROHS3 Compliant
