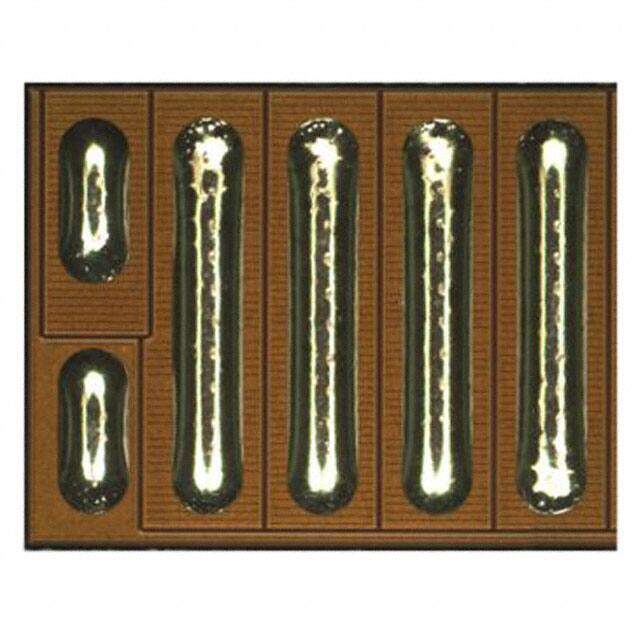

EPC2016
RoHS
RoHS compliant
RoHS compliantPackage Die
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
TRANS GAN 100V 11A BUMPED DIE
PDF
/
Inventory: 3731
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Die
Supplier Device Package Die
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Published 2012
Series eGaN?
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Technology GaNFET (Gallium Nitride)
FET Type N-Channel
Rds On (Max) @ Id, Vgs 16mOhm @ 11A, 5V
Vgs(th) (Max) @ Id 2.5V @ 3mA
Input Capacitance (Ciss) (Max) @ Vds 520pF @ 50V
Current - Continuous Drain (Id) @ 25°C 11A Ta
Gate Charge (Qg) (Max) @ Vgs 5.2nC @ 5V
Drain to Source Voltage (Vdss) 100V
Drive Voltage (Max Rds On,Min Rds On) 5V
Vgs (Max) +6V, -5V
Continuous Drain Current (ID) 11A
Input Capacitance 520pF
Rds On Max 16 mΩ
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
