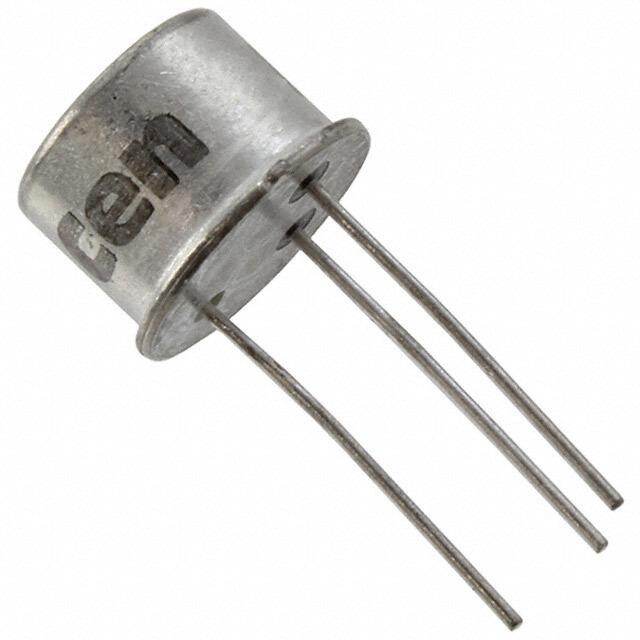

2N5058
RoHS
/
Package TO-39
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
Bipolar Transistors - BJT Small Signal Transistor
PDF
/
Buying Options
Total Price: USD $44.93
Unit Price: USD $44.93025
≥1 USD $44.93025
≥10 USD $36.8657
≥100 USD $35.71335
≥500 USD $34.56195
≥1000 USD $33.4096
Inventory: 1143
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Package / Case TO-39
Technical
Packaging Bulk
Published 2016
JESD-609 Code e0
Pbfree Code no
Part Status Active
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 200°C
Min Operating Temperature -65°C
HTS Code 8541.29.00.95
Subcategory Other Transistors
Terminal Position BOTTOM
Terminal Form WIRE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
JESD-30 Code O-MBCY-W3
Qualification Status Not Qualified
Number of Elements 1
Polarity NPN
Power Dissipation-Max 1mW
Element Configuration Single
Transistor Application AMPLIFIER
Gain Bandwidth Product 30MHz
Collector Emitter Voltage (VCEO) 1V
Max Collector Current 150mA
Collector Emitter Breakdown Voltage 300V
Transition Frequency 30MHz
Frequency - Transition 160MHz
Collector Base Voltage (VCBO) 300V
Emitter Base Voltage (VEBO) 7V
DC Current Gain-Min (hFE) 35
Compliance
RoHS Status RoHS Compliant
