RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description

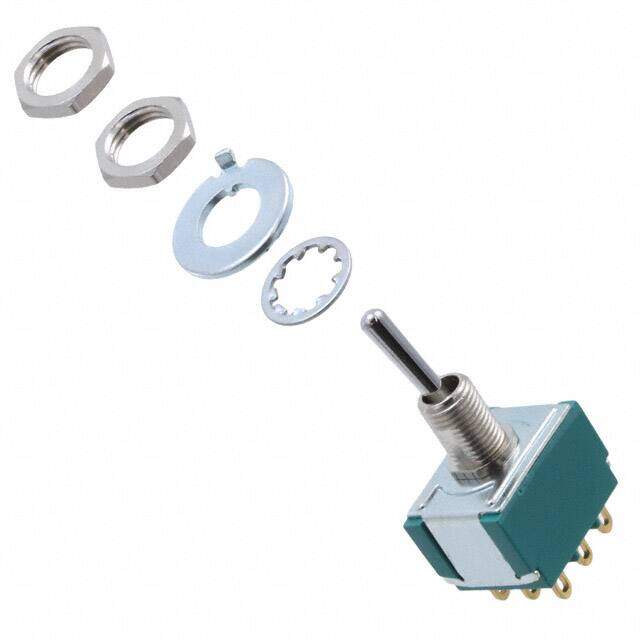

SWITCH TOGGLE 3PDT 6A 125V
PDF
/
Buying Options
Total Price: USD $18.52
Unit Price: USD $18.5152
≥1 USD $18.5152
≥10 USD $17.24624
Inventory: 203
Minimum: 1
-
+
Technical Details
Technical
Circuit 3PDT
Actuator Type Standard Round
Body Breadth 13 mm
Body Length or Diameter 17.81mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 6A
Orientation Vertical
Current Rating (Amps) 6A AC 4A DC
Voltage - Rated DC 28V
HTS Code 8536.50.90.65
Color Green
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MTA Green
Published 2004
Packaging Bulk
Operating Temperature -20°C~80°C
Operating Force-Max 14.71 N
Contact Voltage(AC)-Max 125V
Contact Current(AC)-Max 6A
Bushing Thread 1/4-40
Contact Current Rating 6A
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 80,000 Cycles
Contact Voltage(DC)-Max 28V
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 4A
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Panel Cutout Dimensions Circular - 6.40mm Dia
Switch Function On-On
Physical
Actuator Material Copper Alloy, Chrome Plated
Surface Mount NO
Mounting Type Panel Mount
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 25 Weeks
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Actuator Length 10.49mm
Body Height 12.5mm
