CF50S-274-JTW
RoHS
/
Package Axial
Category Resistors / Through Hole Resistors
Description

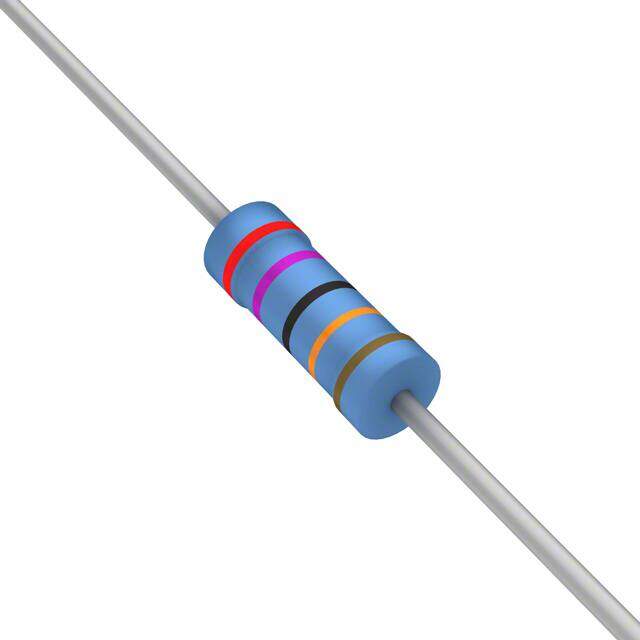

CF FIXED RESISTOR Axial through hole resistor 5% 270kOhm 500mW
PDF
/
Inventory: 6540
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Rated Temperature 70°C
Lead Diameter 0.6 mm
Working Voltage 350V
Operating Temperature (Min) -55°C
Operating Temperature (Max) 155°C
Rated Power Dissipation (P) 0.5W
Reference Standard MIL-R-11
Resistor Type FIXED RESISTOR
Construction Cylindrical
Technology CARBON FILM
Packing Method TR
Power Rating 500mW
Subcategory Fixed Resistors
HTS Code 8533.10.00.65
Terminal Finish Matte Tin (Sn)
Resistance 270kOhm
ECCN Code EAR99
Number of Terminations 2
Pbfree Code yes
JESD-609 Code e3
Tolerance 5%
Series CF
Published 2006
Packaging Cut Tape
Physical
Mounting Feature THROUGH HOLE MOUNT
Terminal Shape WIRE
Surface Mount NO
Package / Case Axial
