RNMF12FTD270K
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description

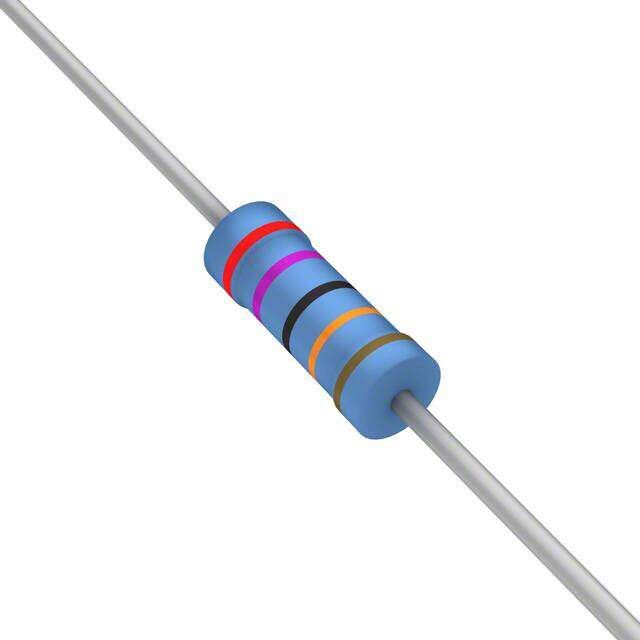

Axial FIXED RESISTOR RNMF (Mini) 0.093Diax0.250L 2.35mmx6.35mm 0.5W 1/2W 270kOhm ±100ppm/C
PDF
/
Inventory: 3223
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Lead Diameter 0.56 mm
Working Voltage 350V
Rated Power Dissipation (P) 0.5W
Resistor Type FIXED RESISTOR
Construction Cylindrical
Max Power Dissipation 500mW
Packing Method TR
Power Rating 500mW
Subcategory FIXED RESISTOR
Additional Feature FLAME PROOF, PRECISION, RATED AC VOLATGE (V): 350
Power (Watts) 0.5W 1/2W
Composition Metal Film
Terminal Finish Matte Tin (Sn)
Resistance 270kOhm
Temperature Coefficient ±100ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Flame Retardant Coating, Safety
JESD-609 Code e3
Tolerance ±1%
Size / Dimension 0.093Diax0.250L 2.35mmx6.35mm
Series RNMF (Mini)
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Mounting Feature THROUGH HOLE MOUNT
Terminal Shape WIRE
Surface Mount NO
Package / Case Axial
Supply Chain
Factory Lead Time 13 Weeks
