0192210231
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminals - Ring Connectors
Description

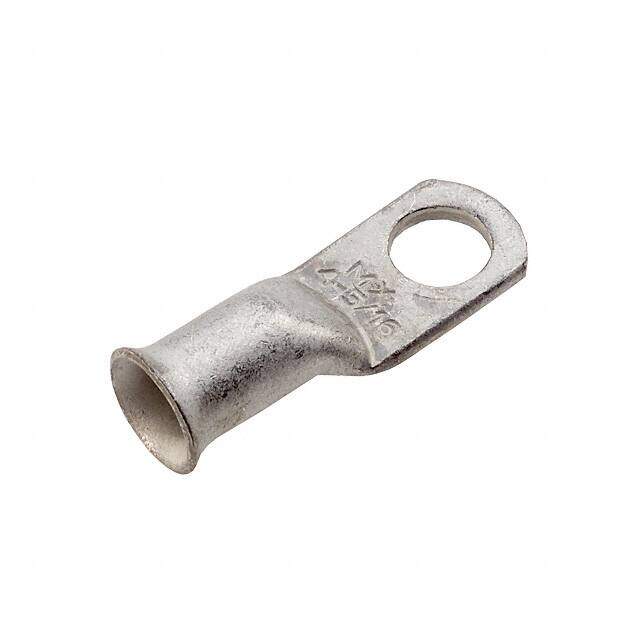

Lug Terminal 4AWG 38.1mm 13.49mm Tin Bag
PDF
/
Buying Options
Total Price: USD $1.22
Unit Price: USD $1.2232
≥1 USD $1.2232
≥10 USD $1.04456
≥100 USD $0.862928
≥500 USD $0.681261
≥1000 USD $0.635844
Inventory: 2867
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Feature Heavy Duty
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
ECCN Code EAR99
HTS Code 8536.90.40.00
Contact Finish Tin
Wire Gauge 4 AWG
Terminal and Terminal Block Type RING TERMINAL
Insulation Non-Insulated
Terminal Type Flat Sided, Tubular (Battery Lugs)
Wire Cross Section 26.6 mm2
Stud/Tab Size 5/16 Stud
Dimensions
Thickness 0.080 2.03mm
Length - Overall 1.500 38.10mm
Width - Outer Edges 0.531 13.49mm
Compliance
RoHS Status ROHS3 Compliant
