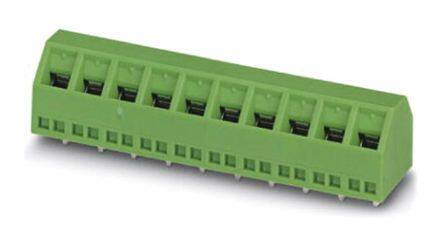

1868209 image
Favorite
1868209 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description Fixed Terminal Blocks MKDSFW 1.5/10-3.5
PDF
/
Buying Options
Total Price: USD $6.84
Unit Price: USD $6.841499
≥1 USD $6.841499
≥10 USD $6.454248
≥100 USD $6.088909
≥500 USD $5.744253
≥1000 USD $5.419102
Inventory: 4595
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Width 36.3mm
Length 11.3mm
Height 13.4mm

Technical

Number of Positions Per Level 10
Screw Thread M2
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Vertical with Board
Number of Ways 10
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 1
Voltage 300V
Wire Gauge 14-30 AWG
Current Rating 12A
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Number of Rows 1
Color Green
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MKDSFW
Published 2011
Packaging Bulk

Physical

Weight 6.639997g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Tin

Supply Chain

Factory Lead Time 7 Weeks
