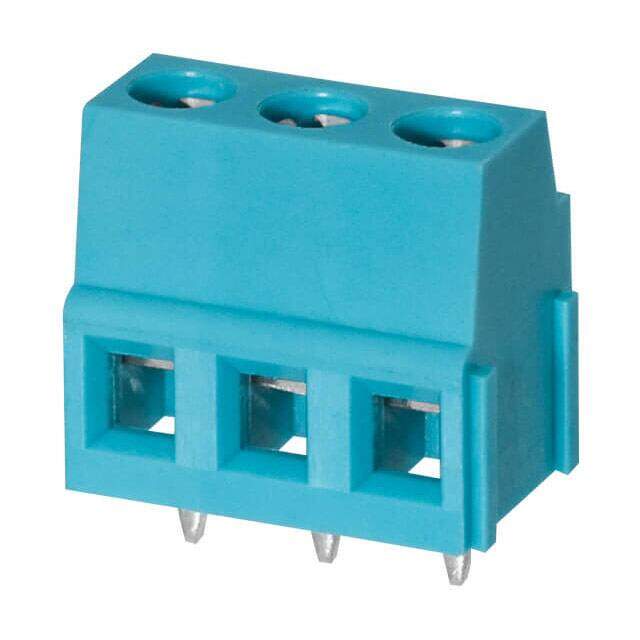

TB007-508-03BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Conn Terminal Block 3 POS 5.08mm Solder ST Thru-Hole 16A/Contact Bag
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264366
≥1 USD $0.264366
≥200 USD $0.102314
≥500 USD $0.098717
≥1200 USD $0.096931
Inventory: 8928
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating Copper Alloy - Nickel Plated
Screw Material - Plating Steel - Zinc Plated
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series TB007-508
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Color Blue
Pitch 0.200 5.08mm
Wire Gauge 12-24 AWG
Voltage 300V
Number of Levels 1
Current 16A
Torque - Screw 0.5 Nm (4.4 Lb-In)
Positions Per Level 3
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Compliance
RoHS Status RoHS Compliant
