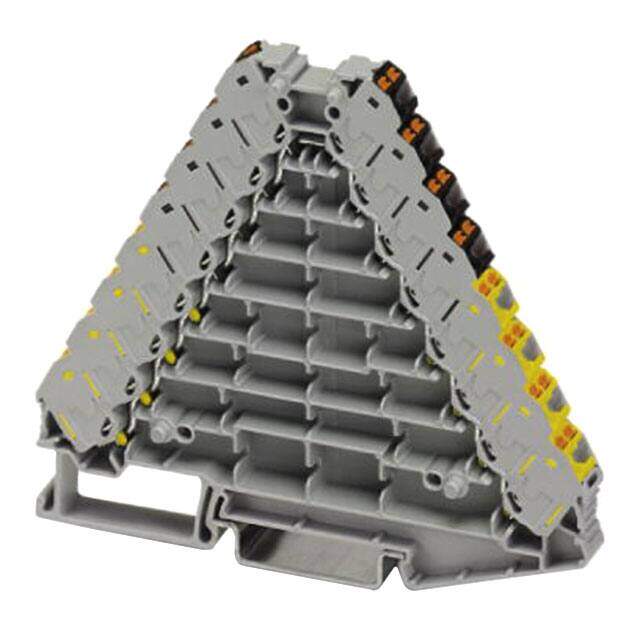

3270149
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Specialized
Description
CLIPLINE PT RoHS Compliant 2016 Polyamide (PA) Nylon Terminal Block Marshalling Connector UL94V-0 26AWG 10A 300V
PDF
/
Buying Options
Total Price: USD $31.62
Unit Price: USD $31.62313
≥1 USD $31.62313
≥10 USD $29.833143
≥100 USD $28.144478
≥500 USD $26.551388
≥1000 USD $25.04848
Inventory: 2362
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Terminal Width 8.3mm
Length 3.937 100.00mm
Height 94.996mm
Technical
Stripping Length 10mm
Current - IEC 17.5A
Wire Gauge or Range - mm2 0.14-2.5mm2
Voltage - IEC 250V
Wire Gauge or Range - AWG 14-26 AWG
Voltage - UL 300V
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 8
Voltage 300V
Housing Color Gray
Termination Style Push In, Spring
Color Grey
Number of Positions 32
Type Marshalling Connector
Part Status Active
Pbfree Code yes
Series CLIPLINE PT
Published 2016
Physical
Material - Insulation Polyamide (PA), Nylon
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
