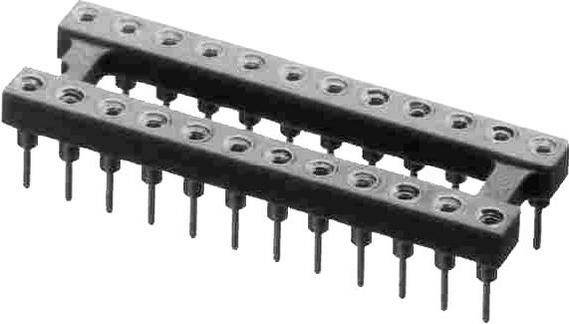

14-3518-111
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description
IC & Component Sockets OPEN FRAME CAPACITOR SOLDER TAIL 14 PINS
PDF
/
Buying Options
Total Price: USD $9.77
Unit Price: USD $9.774541
≥1 USD $9.774541
≥200 USD $3.900626
≥500 USD $3.770649
≥1000 USD $3.705004
Inventory: 2035
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 10.0μin 0.25μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Technical
Pitch - Post 0.100 2.54mm
Termination Post Length 0.125 3.18mm
PCB Contact Row Spacing 0.3 mm
Mating Contact Pitch 0.1 inch
Contact Style RND PIN-SKT
Lead Length 3.175mm
Body Breadth 0.4 inch
PCB Contact Pattern RECTANGULAR
Number of Contacts 14
Lead Pitch 2.54mm
Body Length or Diameter 0.7 inch
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Contact Finish - Mating Gold
Additional Feature STANDARD: UL 94V-0
Number of Rows 2
Number of Positions 14
Type DIP, 0.3 (7.62mm) Row Spacing
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Open Frame
JESD-609 Code e4
Series 518
Published 2006
Packaging Bulk
Physical
Contact Material - Post Brass
Contact Material - Mating Beryllium Copper
Number of Positions or Pins (Grid) 14 (2 x 7)
Housing Material Polyamide (PA46), Nylon 4/6, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 5 Weeks
