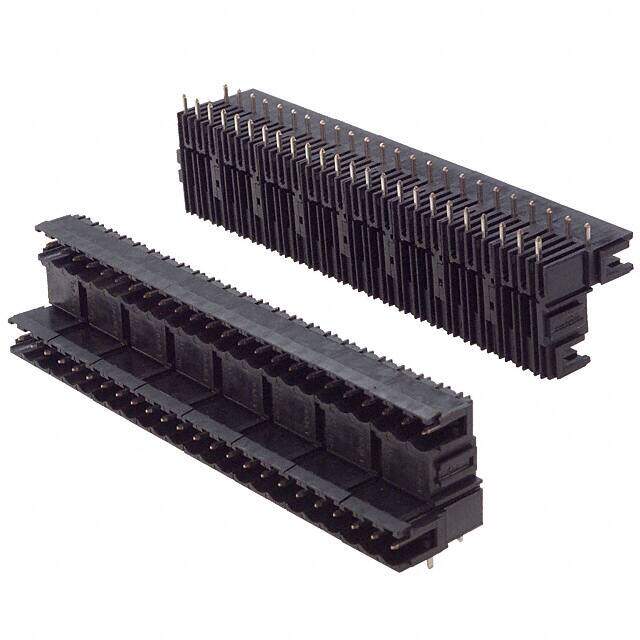

1726730000
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 48POS 5.08MM
PDF
/
Inventory: 8933
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -20°C~100°C
Packaging Bulk
Published 2006
Series Omnimate SL
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type PCB, Terminal Block
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 48
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 300V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.200 5.08mm
Total Number of Contacts 48
Insulation Height 1.032 26.21mm
Current Rating 15A
Termination Style Solder
UL Flammability Code 94V-0
Insulation Resistance 1MOhm
Voltage 300V
Contact Tail Length 0.177 4.50mm
Number of Levels 2
Current 15A
Contact Mating Finish Tin
Voltage - IEC 250V
Positions Per Level 24
Header Orientation 90°, Right Angle
Current - IEC 7A
Dimensions
Height 26.2mm
Width 22.2mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
