2-1445555-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

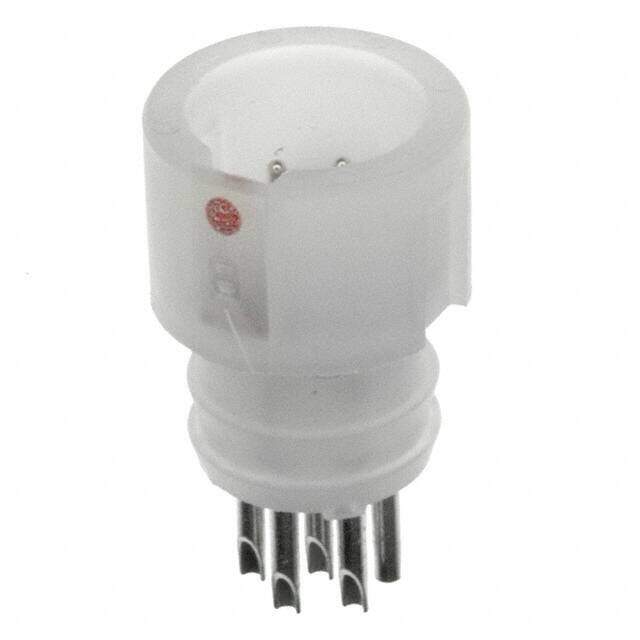

Standard Circular Connector 7P RCPT CONN SPRING PROBE
PDF
/
Inventory: 6805
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Plastic
Shell Material Thermoplastic
Technical
Operating Temperature 105°C Max
Packaging Bulk
Published 2008
Series Micro CPC
JESD-609 Code e3
Feature Spring Probe
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 7
Color White
Gender Female
Voltage - Rated 250V
Fastening Type Latch Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 7
Orientation Keyed
Ingress Protection IP65 - Dust Tight, Water Resistant
Depth 6.48mm
Reach Compliance Code unknown
Current Rating 2A
Shell Size - Insert M9.5
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
ELV Compliant
Dimensions
Length 16.55mm
Compliance
RoHS Status RoHS Compliant
Lead Free Not Applicable
Ratings Dust Tight, IP65, Water Resistant
