3213348
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

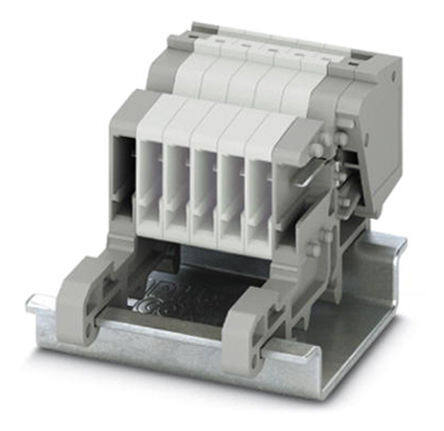

TERM BLOCK RCPT 12POS STR 3.5MM
PDF
/
Inventory: 1124
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Technical
Packaging Bulk
Published 2015
Series CLIPLINE COMBI PPC
Feature Rail Mount Foot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Receptacle, Female Sockets
Color Gray, Green, Yellow
Pitch 0.138 3.50mm
Termination Style Screwless - Leg Spring, Push-In Spring
Number of Levels 1
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge or Range - AWG 14-26 AWG
Voltage - IEC 500V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Current - IEC 17.5A
Number of Positions Per Level 12
Compliance
RoHS Status RoHS Compliant
