3061981
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

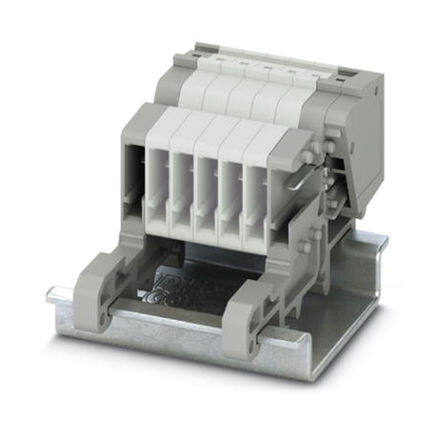

Coupling PPC 1,5/S-NS/18 3061981 Phoenix Contact
PDF
/
Inventory: 1082
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 63mm
Technical
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Wire Gauge or Range - AWG 14-26 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 26 AWG
Number of Levels 1
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 17.5A
Pitch 0.138 3.50mm
Voltage - Rated 500V
Color Gray
Number of Positions 18
Type Receptacle, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Rail Mount Foot
Series CLIPLINE COMBI PPC
Published 2015
Packaging Bulk
Physical
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
