641210-6
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER RT/A .156 6POS 30AU
PDF
/
Inventory: 4039
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
PCB Thickness 1.6002mm
Length - Tail 3.18mm
Plating Thickness 760 nm
Width 10.8mm
Length 23.77mm
Height 10.795mm
Technical
Contact Rating (Current) 7A
Mating Post Length 10.16mm
Contact Pattern RECTANGULAR
Max Voltage Rating (AC) 600V
ELV Compliant
Body/Shell Style RECEPTACLE
Insulation Resistance 5000000Ohm
Contact Resistance 3mOhm
Contact Style SQ PIN-SKT
Operating Supply Voltage 600V
Lead Length 3.18mm
Housing Color Natural, White
Contact Gender Male
Body Breadth 0.3 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 10.16mm
Number of Contacts 6
Number Of PCB Rows 1
Shrouding No
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 600V
Number of Conductors ONE
Current Rating 7A
Depth 18.72mm
Orientation Right Angle
Pitch 3.9624mm
Contact Finish - Mating AU ON NI
Subcategory Headers and Edge Type Connectors
Fastening Type Friction
Voltage - Rated 600V
Number of Rows 1
Color Natural
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Connector Type Header, Pin, Plug
Termination Solder
Packaging Bulk
Physical
Underplate Material Nickel
PCB Mounting Orientation Right Angle
Housing Material Polyester
Contact Shape Square
Mount Through Hole
Contact Plating Gold
Contact Material COPPER ALLOY

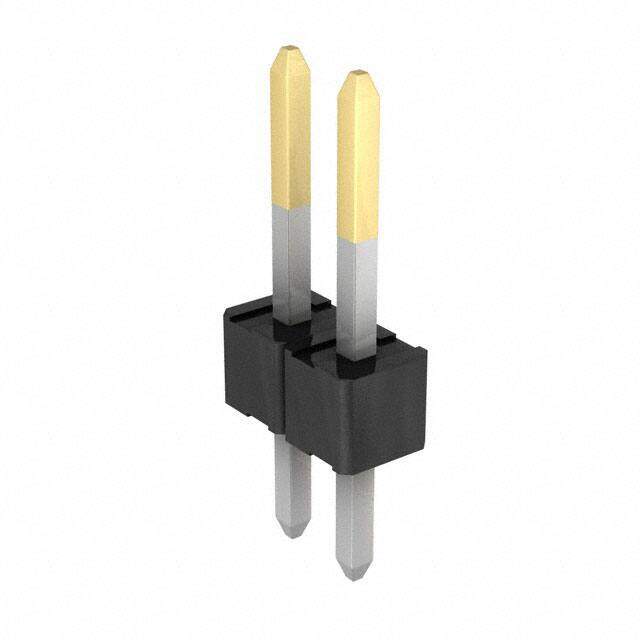

Alternative Model
