2854720
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

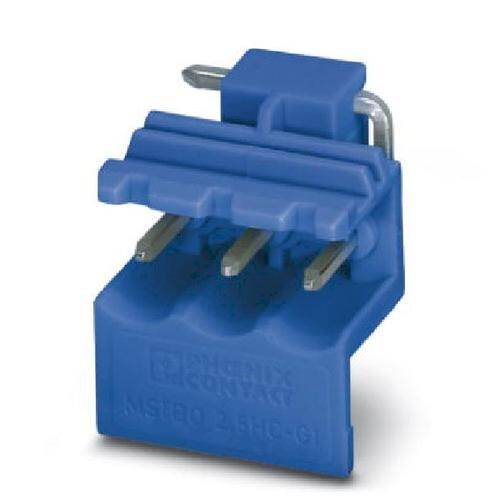

TERM BLOCK HDR 3POS 90DEG 5MM
PDF
/
Inventory: 1246
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 1.909992g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 3
Color Blue
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, UL 94V-0
Pitch 0.197 5.00mm
Insulation Height 0.709 18.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Number of Levels 1
Current 12A
Number of Decks 1
Current - UL 16A
Voltage - IEC 400V
Number of Ways 3
Safety Approval CB; CCA; CSA; CUL; UL; VDE
Header Orientation 90°, Right Angle
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
