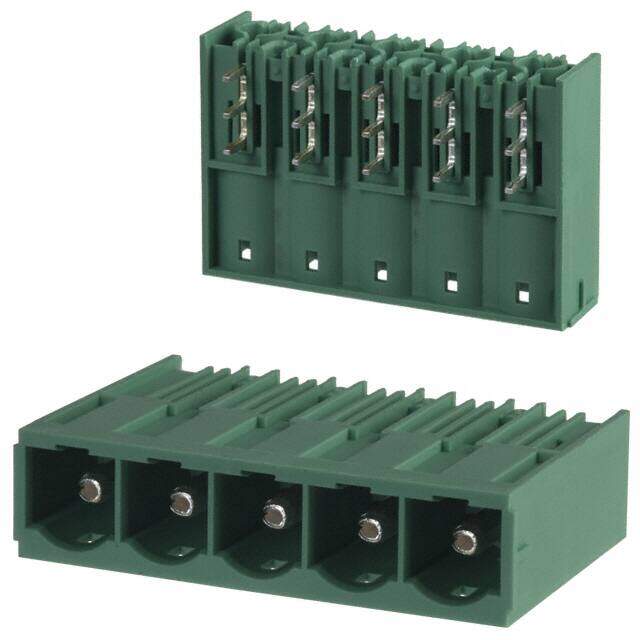

1998962 image
Favorite
1998962 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 5POS 10.16MM
PDF
/
Buying Options
Total Price: USD $32.49
Unit Price: USD $32.489023
≥1 USD $32.489023
≥200 USD $12.963575
≥500 USD $12.530318
≥1000 USD $12.316315
Inventory: 8666
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 19.459992g

Technical

Packaging Bulk
Published 2010
Series COMBICON PC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Voltage - Rated 1kV
Pitch 0.400 10.16mm
Depth 4mm
Insulation Height 0.528 13.40mm
Reach Compliance Code unknown
Current Rating 76A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.157 4.00mm
Number of Levels 1
Current 5A
Contact Mating Finish Silver
Voltage - UL 300V
Number of Decks 1
Current - UL 66A
Number of Ways 5
Header Orientation 90°, Right Angle

Dimensions

Length 4mm
Width 32mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
