5040500691
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

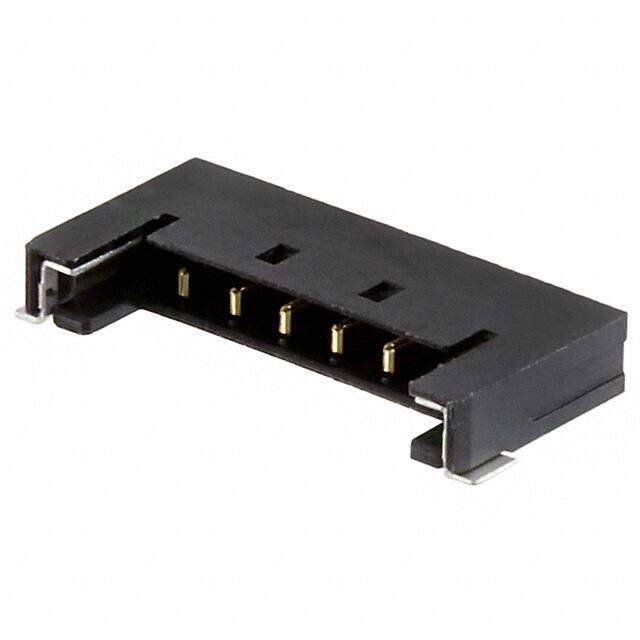

MOLEX 504050-0691. CONNECTOR, HEADER, 6 POSITION, 1ROW, 1.5MM
PDF
/
Buying Options
Total Price: USD $1.25
Unit Price: USD $1.2496
≥1 USD $1.2496
≥10 USD $1.03224
≥100 USD $0.8602
≥500 USD $0.688142
Inventory: 17627
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 3.94μin 0.100μm
Length 13.55mm
Height 2.15mm
Technical
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.059 inch
Contact Resistance 20mOhm
Housing Color Black
Contact Gender Male
Body Breadth 0.079 inch
Number of Contacts 6
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.059 1.50mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.079 2.00mm
Depth 6.44mm
Orientation Right Angle
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Blade
Contact Finish - Mating Gold
Fastening Type Detent Lock
Voltage - Rated 150V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Lighting, Telecommunications
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series Pico-Lock 504050
Published 2012
Packaging Cut Tape (CT)
Operating Temperature -40°C~105°C
Physical
Housing Material Thermoplastic
Insulation Material Polyamide (PA), Nylon
Contact Shape Rectangular
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 13 Weeks
