1923885
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

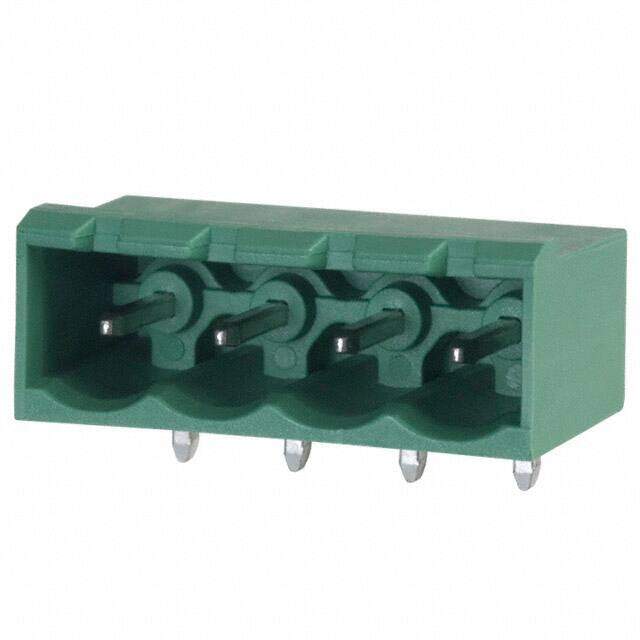

Pluggable Terminal Blocks 4 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.17
Unit Price: USD $1.1704
≥1 USD $1.1704
≥10 USD $1.1352
≥100 USD $1.06128
≥500 USD $0.97636
≥1000 USD $0.958109
Inventory: 142
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.479987g
Technical
Packaging Bulk
Published 2001
Series COMBICON MSTBA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Green
Number of Rows 1
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 0.339 8.61mm
Reach Compliance Code unknown
Current Rating 16A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 16A
Number of Decks 1
Voltage - IEC 400V
Number of Ways 4
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Height 12.1mm
Length 12mm
Width 22.32mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
