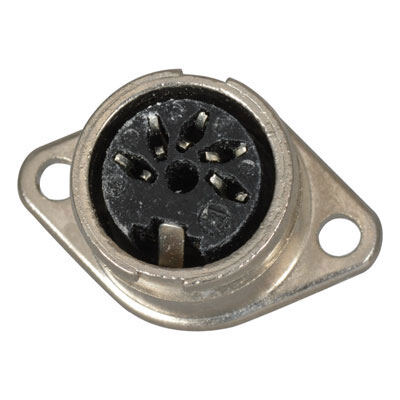

57HB5F
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
DIN Connectors 5 PIN FEMALE RECEPT
PDF
/
Inventory: 9946
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Technical
Contact Pitch Circle Diameter 7mm
EMI Shielded NO
Insertion Force-Max 8.0064 N
Number of Ports 1
Polarization Key POLAR PIN POSITION
Contact Style BELLOWED TYPE
Rated Current (Signal) 3A
Body Depth 0.472 inch
Body Breadth 0.748 inch
Reliability COMMERCIAL
Shell Size - Insert DIN 180 Degree
Current Rating 3A
Shielding Shielded
Orientation F
Total Number of Contacts 5
Option GENERAL PURPOSE
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory DIN Connectors
Fastening Type Push-Twist
Additional Feature POLARIZED
Voltage - Rated 34VDC
Gender Female
Number of Positions 5
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Ground
Published 2005
Packaging Bulk
Physical
Insert Material Plastic
Shell Material Steel
Mounting Feature Flange
Mounting Type Panel Mount
Mount Flanges, Panel
Contact Plating Nickel, Tin
Supply Chain
Factory Lead Time 6 Weeks
