1894888
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

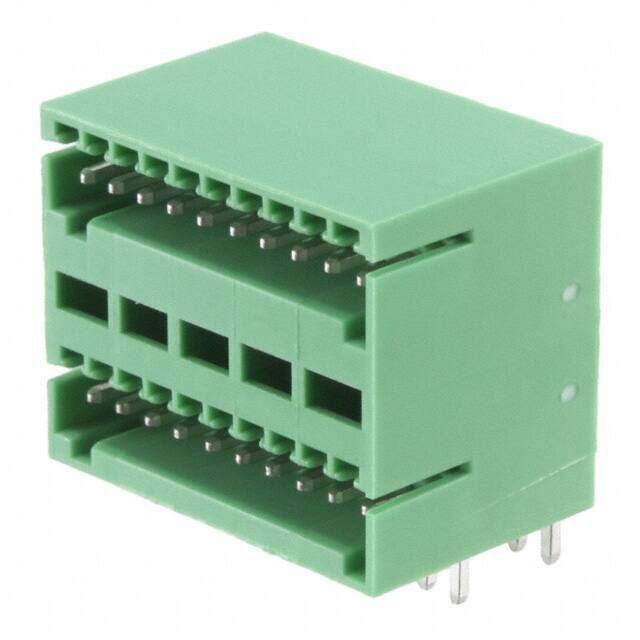

Terminal block; PCB; Header; Male Pins; Shrouded (4 Side); 20 position; 4A; 320V; Solder
PDF
/
Buying Options
Total Price: USD $11.64
Unit Price: USD $11.6424
≥1 USD $11.6424
≥10 USD $11.32208
≥100 USD $10.58112
≥500 USD $9.734648
≥1000 USD $9.5524
Inventory: 466
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 26.9mm
Length 17.5mm
Height 25.7mm
Technical
Number of Positions Per Level 10
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 10
Voltage - IEC 320V
Number of Decks 1
Current 4A
Number of Levels 2
Max Current Rating 4A
Contact Tail Length 0.150 3.81mm
Voltage 125V
Termination Style Solder
Current Rating 4A
Reach Compliance Code unknown
Insulation Height 0.862 21.89mm
Orientation Right Angle
Pitch 0.098 2.50mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 80V
Number of Rows 1
Color Green
Number of Positions 20
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON MCD
Published 2011
Packaging Bulk
Physical
Weight 8.380006g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
