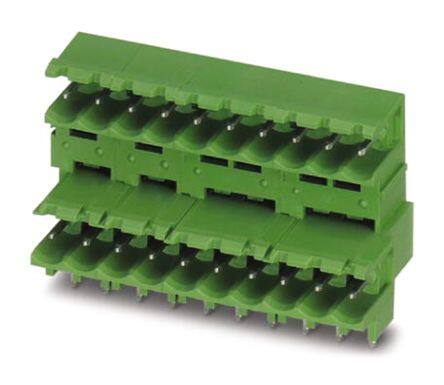

1846797
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 24POS 90DEG 5MM
PDF
/
Inventory: 1152
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Technical
Packaging Bulk
Published 2014
Series COMBICON MDSTB
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 24
Color Green
Number of Rows 1
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Right Angle
Termination Style Solder
Voltage 300V
Max Current Rating 10A
Number of Levels 2
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Positions Per Level 12
Number of Ways 12
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 10A
Fastening Method PLUG IN
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
