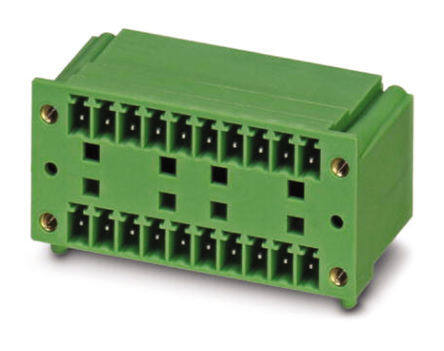

1842966
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 7 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $10.84
Unit Price: USD $10.841024
≥1 USD $10.841024
≥10 USD $10.227381
≥100 USD $9.648481
≥500 USD $9.102333
≥1000 USD $8.587108
Inventory: 4163
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 37.06mm
Length 11.51mm
Height 26.2mm
Technical
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 7
Positions Per Level 7
Voltage - IEC 320V
Number of Decks 1
Current 8A
Number of Levels 2
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.894 22.71mm
Depth 11.51mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Number of Positions 14
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Mating Flange
Series COMBICON MCD
Published 2011
Packaging Bulk
Physical
Weight 10.399994g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
