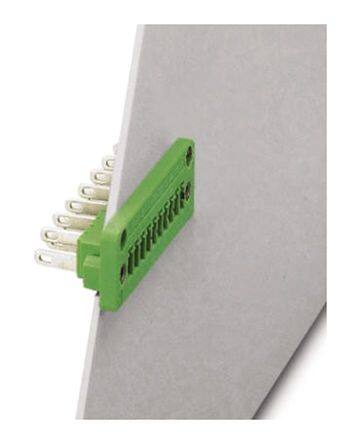

1829248
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 11 Pos 7.62mm pitch Through Hole Header
PDF
/
Inventory: 3415
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 176.999992g
Technical
Packaging Bulk
Published 2014
Series COMBICON GMSTBV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 11
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 630V
Number of Ways 11
Safety Approval UL
Header Orientation Vertical
Current - IEC 12A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
