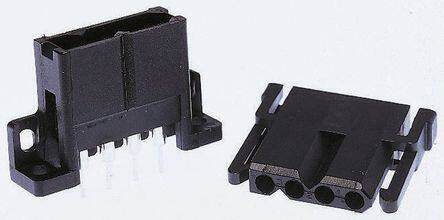

192991-0320
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
TRI SNAP 6 PIN HEADER PCB TIN
PDF
/
Inventory: 2403
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material NOT SPECIFIED
Mounting Type BOARD
Insulation Material NYLON
Mounting Option 1 LATCH
Mounting Style STRAIGHT
Board Mounting Option HOLE .138-.163
Mounting Option 2 LOCKING
Technical
Published 1998
Pbfree Code yes
Part Status Active
Connector Type BOARD CONNECTOR
Number of Rows 1
Additional Feature LOW PROFILE
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 6
Terminal Pitch 5.08mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 1.838 inch
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 105°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.385 inch
Contact Gender MALE
Operating Temperature (Min) -40°C
UL Flammability Code 94V-0
Body Depth 0.911 inch
Rated Current (Signal) 10A
Contact Style RND PIN-SKT
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.2 inch
Body/Shell Style RECEPTACLE
Termination Type SOLDER
Polarization Key POLARIZED HOUSING
Contact Pattern RECTANGULAR
Insulator Color BLACK
Dimensions
Length - Termination 0.185 inch
Compliance
RoHS Status RoHS Compliant
