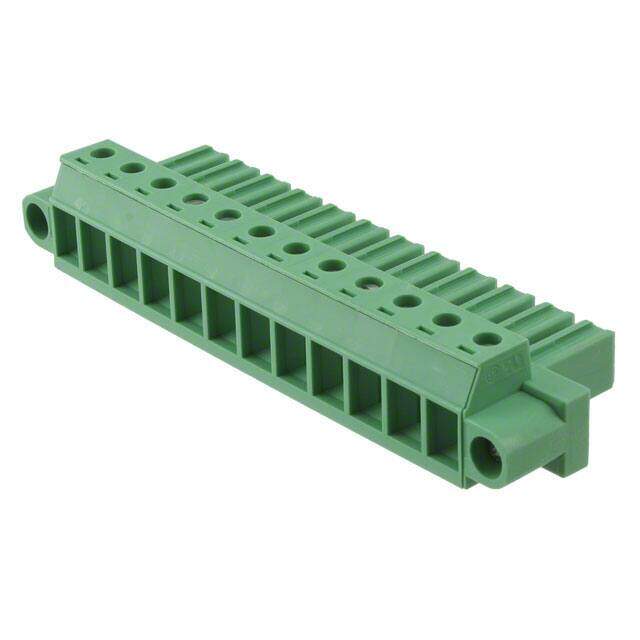

1827583
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 12 Pos 7.62mm pitch Plug 24-10 AWG Screw
PDF
/
Buying Options
Total Price: USD $29.41
Unit Price: USD $29.4096
≥1 USD $29.4096
≥10 USD $28.60968
≥100 USD $26.738096
≥500 USD $24.598992
≥1000 USD $22.727232
Inventory: 152
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 30.7mm
Length 91.42mm
Height 30.7mm
Technical
Wire Cross Section 4 mm2
Screw Size M3
Number of Positions Per Level 12
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-4mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 12
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 1kV
Current - UL 5A
Wire Gauge or Range - AWG 10-30 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 30 AWG
Current 20A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 20A
Insulation Height 0.713 18.10mm
Depth 18.1mm
Orientation Straight
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 400V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON PC
Published 2011
Packaging Bulk
Physical
Weight 350.000009g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Plug-In
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
