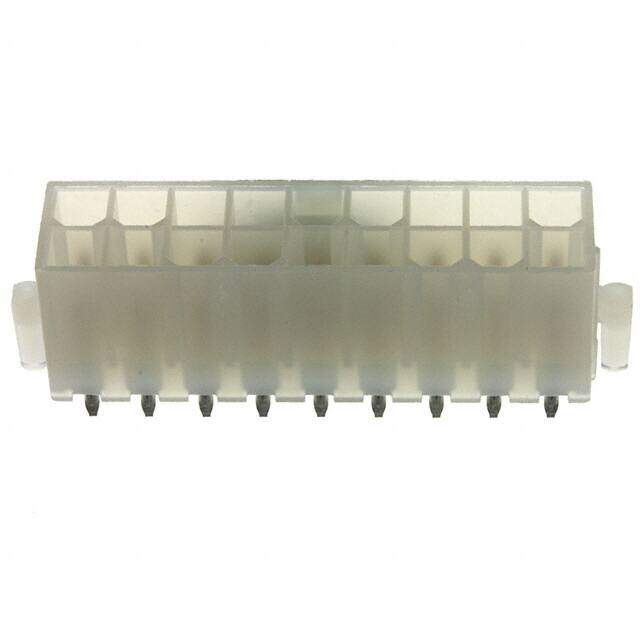

0039299184 image
Favorite
0039299184 image
Favorite

0039299184

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Power HDR 18 POS 4.2mm Solder ST Thru-Hole 18 Terminal 1 Port Mini-Fit Jr? Tray
PDF
/
Buying Options
Total Price: USD $5.15
Unit Price: USD $5.148
≥1 USD $5.148
≥10 USD $4.47392
≥100 USD $3.938
Inventory: 1044
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm

Technical

Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color Natural
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.504 12.80mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Number of Rows 2
Applications General Purpose, Industrial, Telecommunications
Number of Positions 18
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series Mini-Fit Jr 5566
Packaging Tray

Physical

Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 6 Weeks
