1804904
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

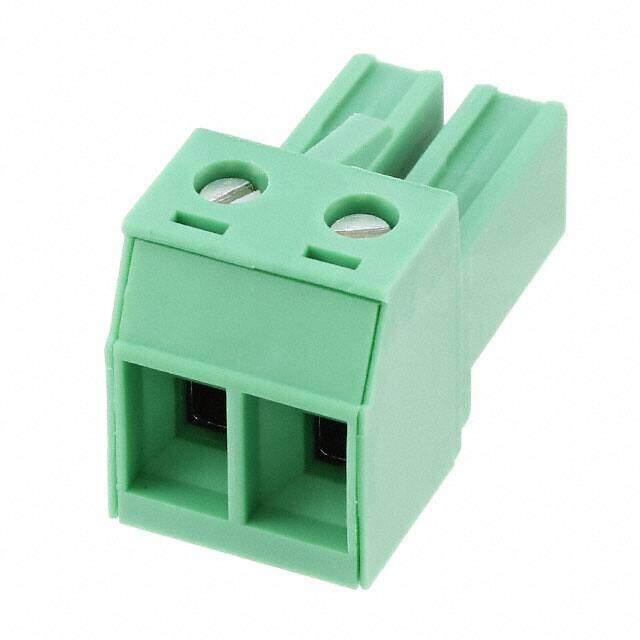

Conn Terminal Block F 2 POS 7.62mm Screw RA Cable Mount 20A
PDF
/
Buying Options
Total Price: USD $4.92
Unit Price: USD $4.9192
≥1 USD $4.9192
≥10 USD $4.78808
≥100 USD $4.4748
≥500 USD $4.116816
≥1000 USD $3.803571
≥3000 USD $3.624597
Inventory: 810
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 30.7mm
Length 15.22mm
Height 18.1mm
Technical
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-4mm2
Plug Wire Entry 180°
Safety Approval UL; CSA
Number of Ways 2
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 10-30 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 10 AWG
Current 5A
Number of Levels 1
Max Current Rating 20A
Max Supply Voltage 400V
Voltage 600V
Number of Contacts 2
Termination Style Screw - Rising Cage Clamp
Current Rating 20A
Insulation Height 0.713 18.10mm
Depth 30.7mm
Orientation Right Angle
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Voltage - Rated 400V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON PC
Published 2001
Packaging Bulk
Physical
Weight 2.100133kg
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper
Supply Chain
Factory Lead Time 7 Weeks
