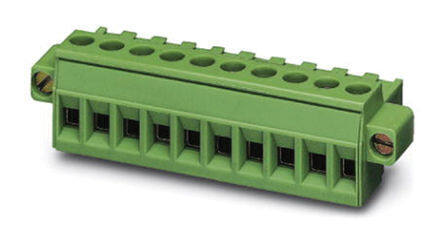

1796319
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON GFKC RoHS Compliant 2012 Explosion Proof Mating Flange Retention Latches (Non-Wire Side) Terminal Block Plug, Female Sockets 24AWG 180° 12A 400V
PDF
/
Buying Options
Total Price: USD $41.69
Unit Price: USD $41.687201
≥1 USD $41.687201
≥200 USD $16.634443
≥500 USD $16.077773
≥1000 USD $15.803377
Inventory: 1206
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Voltage - IEC 1kV
Wire Gauge or Range - AWG 12-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Current 12A
Number of Levels 1
Voltage 400V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.300 7.62mm
Voltage - Rated 400V
Color Green
Number of Positions 12
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Explosion Proof, Mating Flange, Retention Latches (Non-Wire Side)
Series COMBICON GFKC
Published 2012
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 6 Weeks
